From construction sites to grocery stores, high-density polyethylene (HDPE) sheets have become an indispensable material across a wide list of industries as a result of unique characteristics. Let’s examine some of these specifications and see how they have benefitted.

1. Overview Of High Density Polyethylene (HDPE) And HDPE Sheets

HDPE stands for high density polyethylene which is a thermoplastic polymer that is hugely utilized by industries because of its numerous outstanding features. HDPE is more highly crystalline than other polyethylenes which makes it have higher density, tensile strength, and chemical resistance.

Read more: HDPE: What Is It? Properties & Common Uses

HDPE sheets are flat, rigid and are formed from high density polyethylene. These sheets offer a range of benefits that make them suitable for a variety of applications:

  • Durability: The physical properties of the produced high density polyethylene sheets include: high durability, the ability to withstand impact and abrasion.
  • Corrosion resistance: Several features that have been mentioned above suggest that high density polyethylene sheets can resist a variety of chemically aggressive environments, acids, and solvents, hence it is widely used where environments containing chemically active substances are involved.
  • Thermal resistance: HDPE sheets can withstand temperatures up to 120°C (248°F) without losing their shape or strength, making them suitable for applications involving heat.
  • Moisture resistance: The moisture absorption that the high density polyethylene sheets undergo is very low. Therefore, these sheets can be used where they are needed to offer protection from moisture or in places that require waterproofing.
  • Ease of fabrication: High density polyethylene sheets are versatile, and can be cut, drilled, welded, or thermoformed to improve the fabrication possibilities.

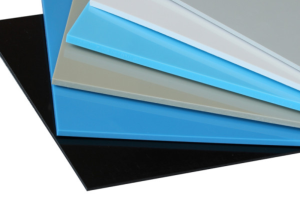

High density polyethylene is used to create flat, stiff HDPE sheets.

High density polyethylene is used to create flat, stiff HDPE sheets.

2. How High Density Polyethylene Sheet Is Made

Step 1. Raw material preparation

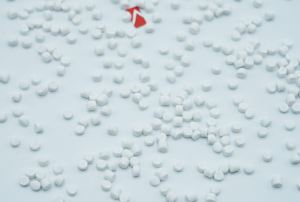

  • High density polyethylene sheets are made from a material called HDPE resin and this is a thermoplastic polymer.
  • The HDPE resins are mostly in the form of small pellets or granules.
  • In some cases, the HDPE resin may be subjected to further processing like drying to eliminate any moisture content that may be present.

Step 2. Extrusion

  • By making use of an extruder machine, the high density polyethylene resin is incorporated into the production process of the sheet.
  • In the extruder, the HDPE resin is heated and mixed with mechanical shear to melt and blend it to achieve uniformity.
  • The molten HDPE material is then forced through the flat, thus giving a continuous sheet-like extrudate.

Step 3. Calendering

  • The extruded high density polyethylene sheet is then taken and rolled between a series of heated rollers called a calendar.
  • The calendar rolls press and heat the HDPE sheet equally to maintain its thickness along with the finish of the products.
  • It is common to run the HDPE sheet through the calendar more than once in order to meet the required thickness and properties.

Step 4. Cooling and winding

  • Of the many processes that it undergoes, the high density polyethylene sheet has to go through the calendar, where it is cooled to make the material harden.
  • The cooled HDPE sheet is then rewound on a large roll or spool, for storage or further processing.

Step 5. Cutting and finishing

  • The high density polyethylene sheet rolls are then cut or slit into the required width and length as per the requirements of the project or client.
  • In some cases, after cutting and bending operations, the HDPE sheets are subjected to further finishing operations such as edge trimming, punching, surface treatment such as printing, lamination, etc.

Step 6. Quality control

  • The high density polyethylene sheets are tested for conformity to laid down specifications on thickness, tensile strength, and chemical resistance among others at various stages of production.

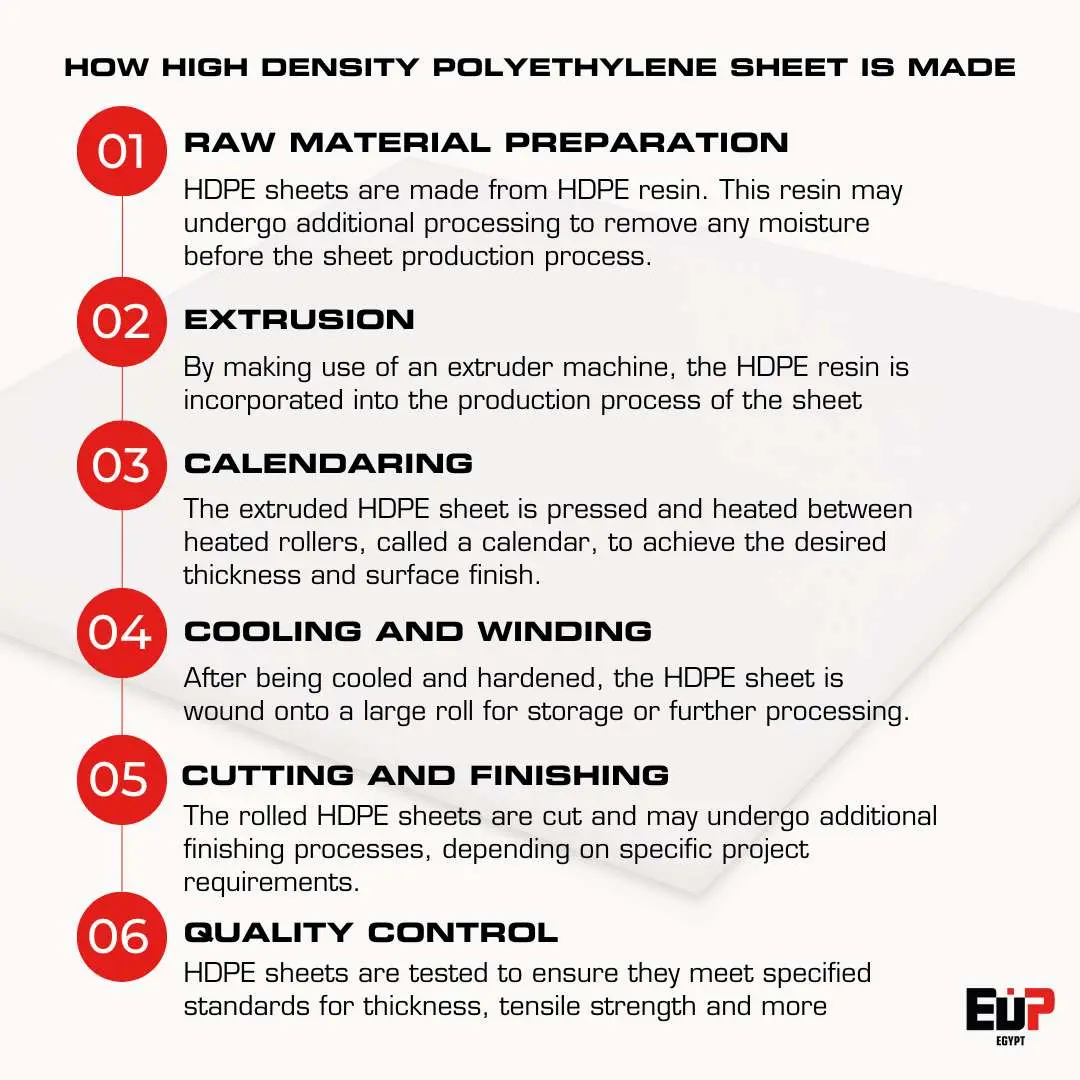

How High Density Polyethylene Sheet Is Made
How High Density Polyethylene Sheet Is Made

3. Benefits Of High Density Polyethylene (HDPE) Sheets

3.1. Construction Applications

High density polyethylene sheets are popular in the construction industry where it is required to prevent water penetration or dampness. They are widely used as liners and membranes in roofs, walls, and floors, thus acting as a protective layer against moisture and water. HDPE sheets are also used for concrete formwork and concrete lining to produce smooth and lasting surfaces.

Geotechnical engineering is another field where HDPE sheets are used as geomembrane for landfill and stratum liners, aqua liners for ponds and reservoirs, and other applications that require water barriers.

Furthermore, HDPE sheets can also be employed as roofing and cladding profiles for the envelope of buildings hence acting as cheaper protective sheets from harsh weather conditions.

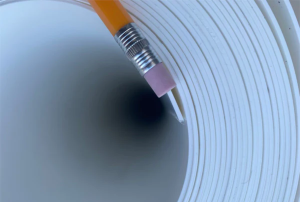

In the building sector, high density polyethylene sheets are widely utilized.
In the building sector, high density polyethylene sheets are widely utilized.

3.2. Automotive Applications

The automotive industry consumes large amounts of high density polyethylene sheets for use in different parts of the car’s interior and exterior. One of the most used automotive interior materials is door panels, dashes, and consoles that are made of HDPE. Such characteristics of the material make HDPE sheets well suited for forming highly detailed and aesthetically appealing designs for automotive interiors.

Furthermore, it can be used in the production of exterior accessories like bumpers, fenders, and trims where its ability to resist impact and withstand weathering comes in handy.

HDPE sheets are also employed in the construction of fuel tanks and other under-hood parts due to the chemical inertia and non-corrosive nature of the material.

3.3. Packaging Applications

High density polyethylene sheets are utilized mostly in the packaging sector, including the manufacturing of food and beverage containers including bottles, jars as well as lids. Their remarkable ability to create barriers, resistance to chemicals, as well as FDA approvals qualify them as ideal food packaging materials. They also apply it in the construction of containers for industrial and household chemicals to facilitate the storage and movement of different chemicals and products.

Furthermore, HDPE sheets are used in the manufacturing of crates, pallets, and other industrial packing materials.

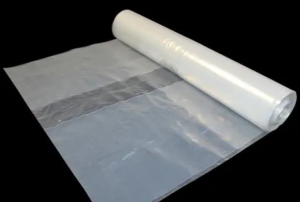

The packaging industry is the primary application for high density polyethylene sheets.
The packaging industry is the primary application for high density polyethylene sheets.

3.4. Medical and Pharmaceutical Applications

High density polyethylene sheets have numerous applications in the medical and pharmaceutical sectors. This contributes to a high degree of biocompatibility and chemical stability, which is why disposable medical items like syringes and IV bags can be produced from them. They are also used in the packaging of pharmaceutical products ensuring proper and safe containers for several pharmaceutical products such as drugs.

Furthermore, HDPE sheets are used in the assembly of prosthetic and orthopedic products due to their toughness and lightweight design of comfortable and efficient health care gadgets.

3.5. Furniture and Furnishings Applications

The application of high density polyethylene sheets is not limited to the above sectors, they have also found a place in the furniture and furnishings industry. HDPE sheets are commonly used in outdoor furniture including tables, chairs, and benches because of their ability to withstand adverse weather conditions, UV checks, and ease of maintenance.

HDPE sheets are equally used for making indoor furniture such as storage containers and shelves among others since they are durable and easy to clean. In the bathroom, features such as shower curtains, trays, and others require the use of HDPE sheets for production due to their effective performance in waterproof products and ease of cleaning.

Outdoor furniture frequently uses high density polyethylene sheets.
Outdoor furniture frequently uses high density polyethylene sheets.

4. Conclusion

High density polyethylene sheets have many advantages and features such as high strength and durability, ease of forming, and lightweight which has placed them as the choice material for many applications in industries. It is, therefore, possible to make informed decisions on how to use HDPE sheets to the benefit of any project that one is handling.
