Understanding the differences between a single and twin screw extruder is crucial for optimizing production efficiency. This article will provide a clear comparison of their design, functionality, and applications, so you can make a smart choice to determine which extruder best suits your plastic production needs.

1. Single Screw Extruder Overview

A single screw extruder is a fundamental machine in polymer processing, designed to transform raw plastic materials into continuous, uniform products. It comprises a helical screw rotating within a heated barrel, where solid polymers are fed, melted, and homogenized. As the screw turns, it conveys the material forward, gradually heating and mixing it until it reaches a molten state. This molten polymer is then forced through a die, shaping it into desired forms such as pipes, sheets, or films. The simplicity and efficiency of single screw extruders make them indispensable in producing a wide range of plastic products.

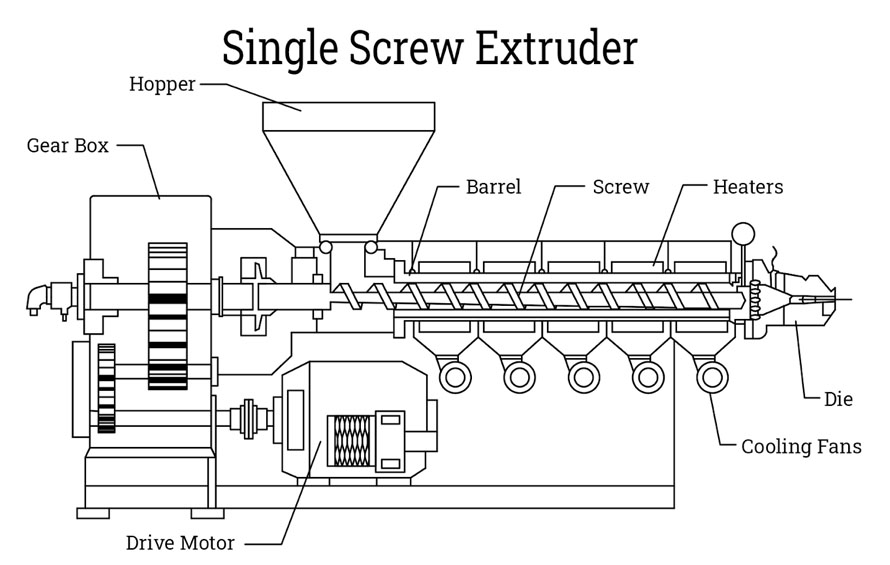

A single screw extruder melts, mixes, and shapes polymers into continuous plastic products
A single screw extruder melts, mixes, and shapes polymers into continuous plastic products.

1.1. Key Components of Single Screw Extruder

The single screw extruder’s efficiency and versatility stem from several key components working in unison:

  • Hopper: The process begins at the hopper, where raw materials are introduced into the system. Positioned at the feed throat, the hopper ensures a consistent supply of material into the barrel. In some setups, feeders are employed to regulate the flow rate, maintaining uniformity in the extrusion process.
  • Barrel: Encasing the screw, the barrel serves as a heated chamber facilitating the material’s transition from solid to molten state. Equipped with external heaters and cooling systems, the barrel maintains precise temperature control, essential for consistent melting and processing of the polymer.
  • Screw: Central to the extruder’s function, the screw is a helical shaft that rotates within the barrel. Its design typically features three zones:
  • Feed Zone: Conveys raw material from the hopper into the barrel.
  • Compression Zone: Applies pressure and heat, melting and homogenizing the material.
  • Metering Zone: Ensures a consistent, uniform flow of molten material to the die.

The screw’s geometry and rotation speed are critical factors influencing the quality and characteristics of the extruded product.

  • Drive Mechanism: The drive mechanism powers the screw’s rotation, typically comprising an electric motor connected through a gearbox. This setup allows for precise control over the screw’s speed and torque, enabling adjustments to accommodate different materials and processing conditions.
  • Heating and Cooling Systems: Heaters, often electric, are mounted along the barrel to elevate temperatures as needed. Conversely, cooling mechanisms, such as air fans or water channels, dissipate excess heat, preventing thermal degradation of the material and ensuring process stability.
  • Die: At the extruder’s discharge end, the die shapes the molten material into the desired profile. By forcing the homogeneous melt through a specifically designed opening, the die determines the cross-sectional geometry of the final product, whether it’s a pipe, sheet, or filament.

Understanding these components and their interplay is crucial for optimizing the single screw extrusion process, ensuring efficient production and high-quality outputs.

1.2. Working Principle

A single screw extruder operates through a step-by-step process, where raw polymer material is gradually transformed into a final product with a definite shape and structure. The entire process is driven by the interaction between mechanical motion, thermal energy, and material flow dynamics.

Material Intake and Initial Processing

The process begins with raw materials, typically in pellet, powder, or granule form, being fed into the hopper at the top of the extruder. Once inside the extruder, the material moves into the feed zone, where it encounters the rotating screw. The screw’s motion starts the process of conveying the material forward, allowing it to undergo initial compression and mixing.

At this stage, two primary forces act on the raw polymer: mechanical shear and thermal conduction. The screw rotates within a fixed barrel, and as the material moves forward, it is compressed due to the progressively narrowing space between the screw flights and the barrel walls. This compression generates friction and mechanical shear, which, along with external heating from the barrel’s embedded electric heaters, increases the temperature of the material.

Melting and Homogenization

As the polymer advances through the barrel, it enters the compression zone, where it undergoes further heating and blending. Here, the space between the screw flights continues to decrease, increasing both pressure and temperature. This phase is critical because the polymer gradually transitions from a solid or semi-solid state into a fully molten, homogeneous material.

The heat required for melting is generated through three primary mechanisms:

  • Frictional heat—arising from the contact between polymer particles as they are compressed.
  • Shear energy—caused by the rotation of the screw as it pushes material forward.
  • External barrel heaters—which provide additional heat to ensure consistent melting.

During this phase, thermal dilation occurs as the material expands due to the combination of heat and pressure. This ensures the polymer is fully melted and has a uniform viscosity before moving to the next stage.

Shaping Through the Die

Once the polymer reaches a fully melted state, it is pushed forward into the metering zone of the extruder. This section ensures that the material is evenly distributed and maintains a consistent pressure and flow rate before being forced through the die. The die serves as the shaping tool, determining the cross-sectional profile of the final extruded product. Different die designs allow for the production of various plastic forms, including pipes, sheets, films, and filaments.

Cooling & Solidification

As the molten polymer exits the die, it immediately undergoes cooling and solidification. This is typically achieved through air or water cooling systems, depending on the specific application. Controlled cooling is essential to maintain the integrity of the product’s shape and mechanical properties.

Process Optimization and Key Factors

The efficiency of a single screw extruder is influenced by several critical factors, including:

  • Screw geometry: The design of the screw (length, pitch, and depth) determines how effectively material is conveyed, compressed, and melted.
  • Temperature control: Maintaining the right heat levels across different barrel zones ensures uniform melting and prevents thermal degradation.
  • Screw speed and pressure: These parameters must be carefully adjusted to optimize output rate and ensure consistent product quality.

By carefully managing these factors, manufacturers can ensure precise shaping, consistent extrusion rates, and high-quality plastic products.

What Are The Differences Between Single And Twin Screw Extruders
A single screw extruder operates through a step-by-step process, where raw polymer material is gradually transformed into a final product with a definite shape and structure.

2. Twin Screw Extruder Overview

A twin screw extruder is a specialized machine utilized in the plastic extrusion process, featuring two intermeshing screws within a barrel. These screws rotate together, effectively mixing and conveying materials forward through the extruder. The design and rotational speed of the screws can be tailored to accommodate various materials and processing requirements. This configuration allows for efficient mixing, kneading, and homogenization, making twin screw extruders particularly advantageous in processing polymers and plastics.

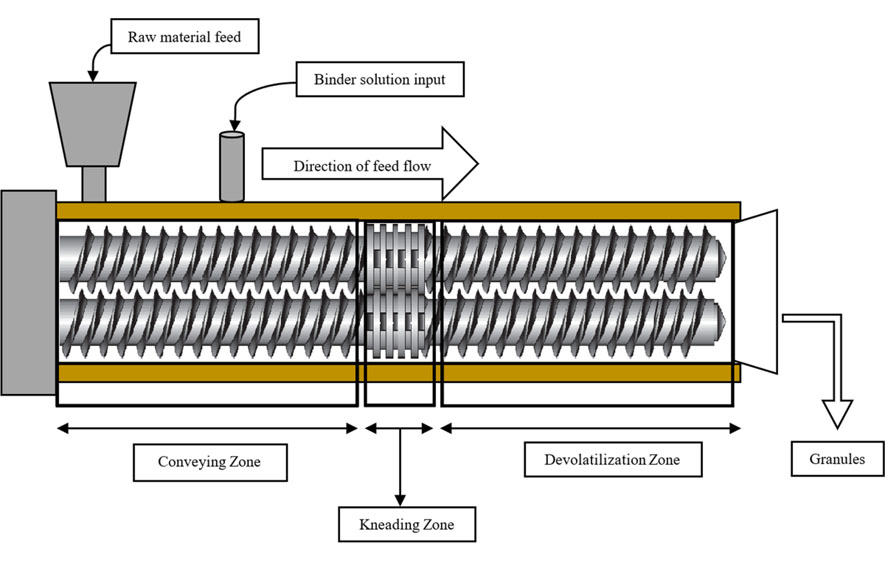

A twin screw extruder efficiently mixes, conveys, and processes polymers using intermeshing rotating screws
A twin screw extruder efficiently mixes, conveys, and processes polymers using intermeshing rotating screws.

2.1. Key Components of Twin Screw Extruder

Screws

At the heart of the extruder are two intermeshing screws that rotate within the barrel. These screws are responsible for conveying, compressing, melting, and mixing the material. Their design can vary to suit specific processing needs:

  • Conveying Elements: These have deeper flights to efficiently move material through the extruder with minimal shear, ensuring gentle handling of sensitive materials.
  • Kneading and Mixing Elements: Designed to impart shear and facilitate thorough mixing, these elements can be configured to enhance either distributive or dispersive mixing, depending on the desired outcome.

Barrel

The barrel encases the rotating screws and provides the controlled environment necessary for material processing. Key features include:

  • Segmented Design: Allows for modular assembly, enabling customization of the processing zones to accommodate various functions such as feeding, melting, mixing, and venting.
  • Temperature Control: Equipped with heating and cooling systems to maintain precise temperature profiles essential for consistent material properties.

Drive System

This system powers the screws and regulates their rotational speed, directly influencing the extruder’s performance. Components include:

  • Motor: Provides the necessary torque to drive the screws.
  • Gearbox: Adjusts the motor’s output to the desired screw speed and torque, ensuring optimal processing conditions.

Feeding Mechanism

Raw materials are introduced into the extruder through the feeding system, which must ensure consistent and uniform delivery to maintain product quality. Design considerations may include side feeders for introducing additives or fillers at specific stages of the process.

Die

Located at the extruder’s discharge end, the die shapes the processed material into the desired profile as it exits the machine. The die design is crucial, as it determines the final product’s shape and dimensions.

2.2. Working Principle of Twin Screw Extruder

Twin screw extruders operate by employing two intermeshing screws that rotate within a closed barrel, effectively transporting and processing materials. The raw material is introduced into the extruder through a hopper and is conveyed along the screws, undergoing heating, mixing, and shearing. This process transforms the material into a homogeneous mixture, which is then forced through a die to achieve the desired shape. The intermeshing design of the screws ensures efficient mixing and consistent material flow, making twin screw extruders highly effective for compounding and processing various materials.

The versatility of twin screw extruders stems from their ability to handle a wide range of materials, including powders, granulates, and liquids. By adjusting screw configurations and operating conditions, these extruders can be tailored to specific processing requirements, such as achieving desired levels of shear and mixing. This adaptability makes them indispensable in industries like plastics, food processing, and pharmaceuticals, where precise control over material properties is essential.

3. Differences Between Single and Twin Screw Extruder

Single and twin screw extruders are fundamental machines in material processing, each with distinct characteristics:

  • Design and Structure:
    • Single Screw Extruder: Features a solitary screw within the barrel, leading to a simpler design and lower manufacturing costs.
    • Twin Screw Extruder: Incorporates two intermeshing screws, resulting in a more complex structure and higher production expenses.
    • Mixing and Processing Capabilities
      • Single Screw Extruder: Relies on material friction for conveying, which may limit its mixing efficiency and make it less suitable for processes requiring intensive blending.
      • Twin Screw Extruder: Offers superior mixing and compounding abilities due to the intermeshing screws, making it ideal for processing materials that demand thorough blending and precise control.
  • Operational Efficiency
      • Single Screw Extruder: Generally has lower output rates and may consume more energy per unit of production.
      • Twin Screw Extruder: Delivers higher throughput with greater energy efficiency, attributed to its design that facilitates better material handling and processing.
  • Application Suitability
    • Single Screw Extruder: Best suited for straightforward extrusion tasks, such as producing continuous profiles, pipes, and films from uniform materials.
    • Twin Screw Extruder: Excels in complex processes like compounding, blending, and reactive extrusion, especially when handling materials requiring precise mixing and temperature control.

In summary, the choice between single and twin screw extruders hinges on specific processing requirements, material characteristics, and desired production efficiency.

4. Single Screw Extruder vs. Twin Screw Extruder: Which One Should You Choose?

When deciding between a single screw extruder and a twin screw extruder, it’s essential to consider your specific processing requirements and material characteristics.

Single screw extruders are generally more cost-effective and simpler in design, making them suitable for straightforward extrusion tasks involving uniform materials. However, they may have limitations in mixing efficiency and handling complex processes.

In contrast, twin screw extruders, though more complex and expensive, offer superior mixing and compounding capabilities due to their intermeshing screws. This makes them ideal for applications requiring thorough blending, precise control, and the ability to process a variety of materials, including those with additives or requiring reactive extrusion.

Therefore, if your production involves complex formulations or demands high flexibility, a twin screw extruder would be the preferable choice. Conversely, for simpler, cost-sensitive applications, a single screw extruder may suffice.

Read more: How Many Types Of Plastic Extruders?

5. Conclusion

In conclusion, selecting the right extruder—whether single or twin screw—depends on your specific production needs, material requirements, and processing efficiency. To maximize the performance of your extrusion processes, EuP Egypt offers a comprehensive range of plastic raw materials, including filler masterbatch, additives, and color masterbatch, tailored for screw extruders.
