Foam injection molding is a sophisticated manufacturing process that combines injection molding with the creation of a foamed structure within the molded part. This article will delve into the intricacies of this technique, examining the key steps involved, the types of foams used, and the diverse applications across industries like automotive, packaging, and consumer goods.

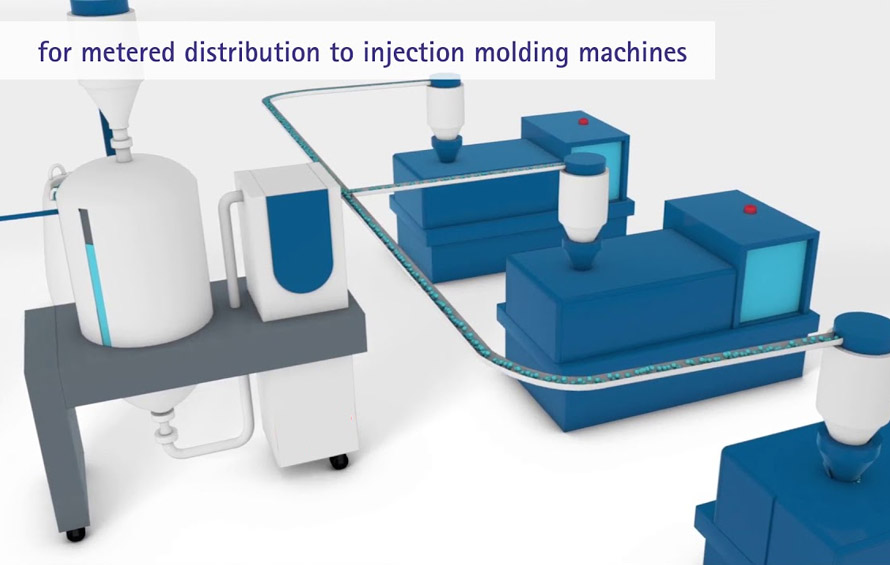

Foam injection molding combines injection molding with foamed structures for diverse industrial applications
Foam injection molding combines injection molding with foamed structures for diverse industrial applications.

1. Understanding Foam Injection Molding Process

1.1. What is foam injection molding?

Foam injection molding is a manufacturing technique that produces lightweight, durable plastic components by introducing a foaming agent into molten polymer. This agent, often a chemical blowing agent or inert gas, causes the material to expand within the mold, forming a cellular structure that reduces weight without compromising strength.

1.2. How does foam injection molding work?

The process begins by mixing the foaming agent with polymers such as polystyrene (PS), polyethylene (PE), or polypropylene (PP). This mixture is melted in the injection molding machine’s heated barrel and injected into a mold where it expands to form a foamed product.

In foam injection molding, pressure control is crucial to prevent premature foaming within the heated barrel. The molten material is injected into the mold, which is at atmospheric pressure.

Once injected, the material expands due to the blowing agent’s action, filling the mold cavity to create the foamed product. This method allows for high production efficiency and yields high-quality products.

The advantages of foam injection molding include the ability to control the dimensional accuracy of parts within 0.001 mm to 0.01 mm, and even below 0.001 mm in some cases. Compared to traditional injection molding processes, parts produced by this technology exhibit superior mechanical properties and dimensional stability, along with high dimensional precision and repeatability, with small tolerance ranges.

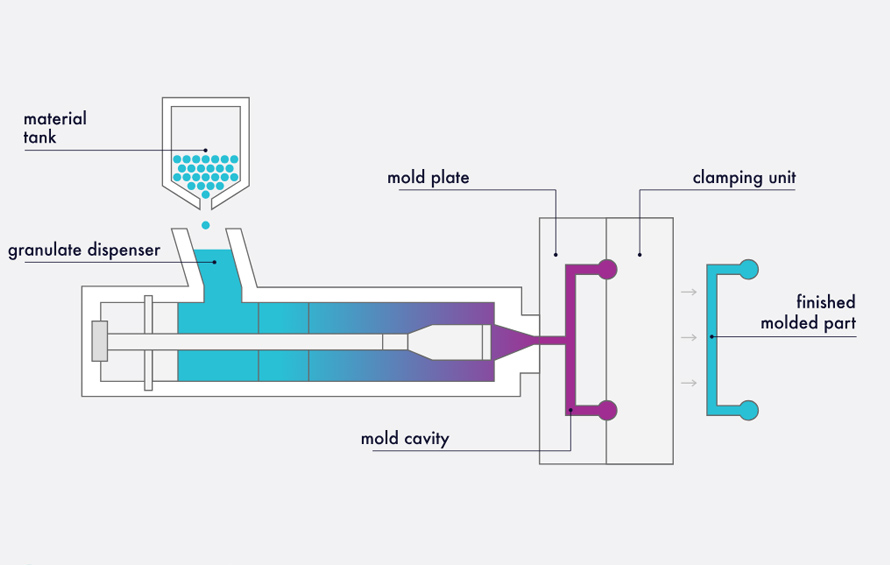

Foam injection molding is a sophisticated manufacturing process that combines injection molding with the creation of a foamed structure within the molded part.
Foam injection molding is a sophisticated manufacturing process that combines injection molding with the creation of a foamed structure within the molded part

2. Types of Foam Injection Molding

Foam injection molding encompasses several distinct methods, each utilizing different techniques to introduce a foamed structure within the polymer matrix. The primary types include:

2.1. Physical Foaming Method

This method relies on physical processes to create foamed plastics and is typically achieved through three main techniques:

  • Inert gases like nitrogen or carbon dioxide are dissolved into the polymer melt under high pressure. When the pressure is released, the gas expands, forming bubbles and creating the foam structure.
  • Low boiling point liquids are blended into the polymer melt and evaporate under heat, transforming into gas to initiate foaming.
  • Hollow microspheres are incorporated into the polymer, producing a foamed structure as they expand during processing.
Physical Foaming Method This method relies on physical processes to create foamed plastics.
Physical Foaming Method This method relies on physical processes to create foamed plastics

2.2. Chemical Foaming Method

This method relies on chemical reactions to produce gas that foams the plastic. Chemical blowing agents, incorporated into the polymer, decompose under the heat of processing, releasing gases that create the foam structure. Alternatively, foaming can occur through gas generated by reactions between different chemical components in the polymer.

A key advantage of this approach is its simplicity and cost-effectiveness, as it eliminates the need for specialized equipment to introduce the foaming agent.

The process closely resembles standard injection molding, with foaming occurring primarily within the injection molding machine. Key stages include heating, temperature rise, mixing, plasticizing, and gas expansion to form the foamed product.

2.3. Structural Foam Molding

Structural foam molding is a foaming process that uses chemical blowing agents (CBAs) or physical blowing agents (PBAs) to create a microcellular foam structure.

This technique combines the strengths of traditional injection molding while addressing key drawbacks such as limited product strength, lengthy production cycles, and low molding efficiency.

The process is ideal for manufacturing large and complex products, as it supports the use of low-cost molds and simultaneous operation of multiple cavities, leading to significant cost reductions.

Structural foam molding produces parts with a solid outer skin and a lightweight, foamed core, delivering exceptional stiffness and strength. This method excels in creating intricate, large-scale components with reduced material consumption and enhanced mechanical performance.

Structural foam molding forms microcellular structures using chemical or physical blowing agents
Structural foam molding forms microcellular structures using chemical or physical blowing agents.

Each of these methods offers unique advantages, making foam injection molding a versatile process tailored to specific application requirements.

3. Advantages of Foam Injection Molding

Foam injection molding offers several notable advantages across various manufacturing applications:

  • Lightweight Components: By incorporating gas into the molten plastic, it significantly reduces the weight of the final product compared to solid injection molding.
  • Enhanced Design Flexibility: The low-pressure nature of foam injection molding allows for the production of large, complex parts with intricate designs. This flexibility enables manufacturers to create components that would be challenging or cost-prohibitive using traditional injection molding methods.
  • Performance Enhancements: Foam injection molding offers numerous performance enhancements. The cellular structure created within the part improves impact resistance, sound insulation, and energy absorption.
  • Superior Physical Properties: Parts produced through foam injection molding exhibit high strength-to-weight ratios and reduced warpage.
  • Material Savings and Cost Efficiency: The foaming process reduces material usage without compromising part performance, leading to cost savings and more sustainable manufacturing practices.

These advantages make foam injection molding a preferred choice for producing high-quality, cost-effective, and lightweight components across various industries.

Foam injection molding reduces weight, enhances flexibility, improves performance, and ensures cost efficiency for the final product
Foam injection molding reduces weight, enhances flexibility, improves performance, and ensures cost efficiency for the final product.

4. Common Applications of Injection Molded Foam

Foam injection molding is a versatile manufacturing process utilized across various industries to produce lightweight, durable components. Here are some common applications:

  • Automotive Industry: Foam injection molding is employed to manufacture parts such as car seats, steering wheels, door linings, roof linings, and central control panels. This process contributes to reducing vehicle weight, enhancing fuel efficiency, and improving overall performance.
  • Packaging Industry: Producing protective inserts, cushioning materials,  shock-absorbing and protective packaging materials for sensitive electronics and other goods.
  • Medical Industry: Creating lightweight and durable components for medical equipment, such as prosthetics and orthopedic implants.
  • Consumer Goods: Manufacturing a variety of products, including sporting goods, toys, and household appliances. Foam injection molding allows for the creation of complex shapes and designs, meeting diverse consumer needs.
  • Aerospace: Creating lightweight and strong components for aircraft interiors and other aerospace applications.
  • Construction: Manufacturing insulation materials, structural components, and other building materials. For example, foam injection molding can be used to create lightweight and high-performance insulation materials, such as foam-filled panels for walls and roofs; sound-absorbing materials, such as acoustic panels and insulation materials, for use in buildings and other structures, etc.

These applications highlight the versatility and efficiency of foam injection molding in producing high-quality, lightweight components.

Foam injection molding creates lightweight, durable components for automotive, packaging, medical, and aerospace applications
Foam injection molding creates lightweight, durable components for automotive, packaging, medical, and aerospace applications.

5. FAQs about Foam Injection Molding

  • What materials can be used in foam injection molding?

Foam injection molding employs a range of thermoplastic materials, such as polystyrene (PS), polypropylene (PP), and polyurethane (PU), etc. as the base resin. These materials are combined with blowing agents and other additives to create the desired foam structure within the molded part.

  • How are foam molding components explained?

Foam injection molding is typically explained by their manufacturing process that combines a polymer resin with a blowing agent to produce lightweight, durable components. The process involves injecting the resin-blowing agent mixture into a mold, where it expands to form a foamed product.

  • How does foam injection molding compare to traditional injection molding?

While traditional injection molding injects molten plastic directly into a mold cavity, foam injection molding incorporates a blowing agent, such as a gas or a chemical, into the molten plastic. This creates a cellular structure within the part, leading to reduced weight, improved insulation, and enhanced impact resistance compared to solid injection molded parts.

  • What are common defects in foam injection molded products?

Common defects in foam injection molded products include sink marks, short shots, warping, and insufficient foam density, etc. These defects can arise from various factors such as improper mold design, incorrect processing parameters, and inadequate material selection.

6. Conclusion

In conclusion, foam injection molding has revolutionized the manufacturing of a wide range of products, offering significant advantages in terms of weight reduction, improved performance, and cost-effectiveness. EuP Egypt, a leading provider of high-quality filler masterbatch for injection molded foam, including special PE filler masterbatch for polyethylene foam, plays a crucial role in optimizing the foam injection molding process.
