HIPS or high impact polystyrene is a type of thermoplastic that is versatile and widely used in various industries. The focus of this guide is on the properties, advantages, disadvantages, and applications of the HIPS plastic material, further comparisons with other plastics included.

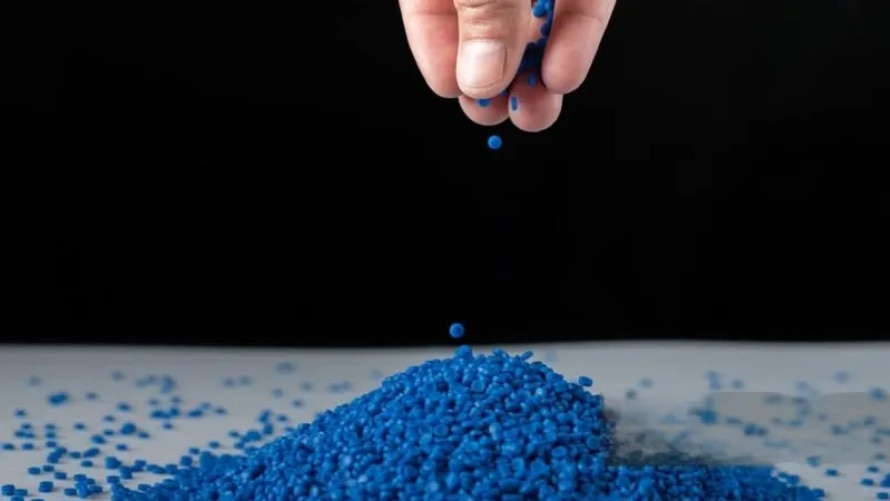

1. What is HIPS Plastic?
HIPS plastic is one of the thermoplastic materials which is produced by the polymerization of the styrene monomers. This material is the cheaper and lightweight plastic that is used in everything from consumer goods to industrial parts. The combination of toughness with easy processing makes it a popular choice in the plastic industry.
2. HIPS plastic properties
2.1. Physical properties:
HIPS plastic material properties include the following physical features:
- Density of HIPS plastic: The density of the HIPS plastic remains around 1.04 g/cm³. This material property has made it easier to process under different applications.
- HIPS plastic melting point: The HIPS plastic melting point is around 230°C or 446°F. This relatively high melting point is useful during the molding and designing of the product in production.
- Impact strength: HIPS material is resistant to high impact without cracking or breaking. The material has excellent impact strength and is ideal for applications that require durability.
- Tensile strength: HIPS plastic provides good tensile strength. Therefore, it is capable of withstanding much stretching without deforming. This strength is important in maintaining the integrity of products made from HIPS material.
- Flexibility: HIPS plastic is a bit flexible and has a resilience that allows it to absorb shock and impacts. This flexibility is useful in applications where some movement or bending is needed.
2.2. Chemical properties
HIPS plastic exhibits quite good chemical resistance against many chemicals, acids, and alkalis, hence can resist the most varied environmental conditions. However, it might be susceptible to some organic solvents that could affect structural integrity.
3. Advantages of HIPS Plastic
HIPS plastic offers several notable advantages that make it a popular choice across various industries:
3.1. Cost-effectiveness
HIPS material is normally much cheaper than many other plastics like ABS and polycarbonate, due to the less complicated manufacturing process and being widely available. This makes it a great option for widely mass-produced items such as packaging and disposable products.
3.2. Excellent impact resistance
The most important advantages of the HIPS plastic are the extremely high impact strengths, in the range of 3-5 kJ/m². Therefore, it is particularly suitable for uses that require durability and resistance to mechanical stress.
3.3. Ease of processing
HIPS material can be molded and extruded easily by standard thermoplastic processing techniques due to its melting point of about 230°C (446°F). Thus, it is one of the favorite materials in injection molding and extrusion. Due to this processing advantage, manufacturing costs are lower and production times much shorter.
3.4. Excellent surface finish
High impact polystyrene has a good surface finish, and this is more appealing when used in consumer products. Moreover, it is easily printable or paintable, which extends the use to applications which require good looks, for example, consumer electronics and household appliances.
3.5. Good thermal insulation
HIPS plastic’s thermal conductivity is relatively low and useful in packaging and insulating materials. That facilitates the preservation of temperature-sensitive products, further enhancing the use of the material in food chaining.
4. Disadvantages of HIPS Plastic
Despite its many advantages, HIPS plastic also has some disadvantages that should be considered:
4.1. Lower heat resistance
HIPS material is less resistant to heat than other engineering plastics such as ABS or polycarbonate. It has a thermal degradation temperature of about 250°C (482°F), thus may be unsuitable for applications that are always exposed to high temperatures, like automotive parts around the engines or electrical components which may generate heat.
4.2. Chemical sensitivity
For HIPS plastic, most of the acids and bases do not readily attack it. However, some organic solvents such as acetone and toluene might attack it. After exposure to such solvents, the material will decompose, thus limiting the use of thermoplastic polymers in conditions that may cause chemical exposure.
4.3. Lower UV stability
HIPS plastic material is not UV stabilized so will naturally deteriorate if left to the sun for an extended period of time. This property makes the material less sufficient for use in an outdoor application unless it has undergone UV stabilization or is coated with a UV-resistant layer.
4.5. Scratch sensitivity
Another disadvantage of HIPS plastic material is that it is highly susceptible to scratching on the surface, leading to the effectiveness of aesthetic value. Sectors, where the appearance of an application requires absolute cleanliness, would apply an additional layer of coating or surface treatment to overcome such problems.
4.5. Limited recyclability
HIPS material may be recycled although its acceptability in recycling programs is lower than other plastics, and this area can be a drawback environmentally. This may lower the appeal with environmentally conscious consumers.
5. Common Uses and Applications of HIPS Plastic
HIPS plastic uses are widespread, such as:
5.1. Packaging
HIPS plastic is really common in the packaging industry, especially for those clamshell kinds of products such as smartphones and headphones. With the perfect clarity and hardness, HIPS material provides a complete result to the product protector but still allows visible properties. Besides, HIPS also exists in some food containers, takeout boxes, and microwaveable trays, which require an excellent resistance to moisture.
5.2. Consumer goods
Few popular key applications of HIPS plastic in the sector of consumer goods are toys and disposable items. LEGO sets and action figures are popular toys made from HIPS material. In addition, HIPS also finds wide applications in making disposable cutlery such as plastic forks and spoons, which form part of the staple diet in fast-food and catering services.
5.3. Electronics industry
The electronic industry uses HIPS plastic for making television housing and computer casings. HIPS material also appears in flat-screen casings of TVs due to its lightweight combined with toughness. Similarly, desktop towers and laptop casings production greatly use HIPS thanks to its impact resistance and high ease of processing.
5.4. Automotive sector
HIPS plastic has its application in the automotive industries, mainly interior parts on car dashboard panels and door trims. Besides being used for protective battery covers for electric vehicles, it gives a good balance between safety and weight.
5.5. Household products
HIPS plastic is among the household products that have made life easier. These would be the kitchen utensils made tough and unbreakable with HIPS material such as food storage containers and bowls for example.
6. HIPS Plastic vs. Other Materials
6.1. HIPS vs. ABS Plastic
HIPS plastic generally has higher impact resistance compared to ABS. Thus, it becomes suitable for various applications that require durability, which range from toys to packaging.
Most importantly, HIPS plastic is cheaper than ABS. Therefore, it is one of the popular materials in the manufacture of mass-produced goods.
However, ABS plastic has much better heat resistance, making it way better for such car parts and electronic parts that could be subjected to greater temperatures.
6.2. HIPS vs. GPPS (General Purpose Polystyrene)
When comparing HIPS to GPPS, HIPS material stands out due to its significantly higher impact strength, making it less brittle and more suitable for applications like protective packaging and toys. Meanwhile, GPPS shows very good clarity and rigidity for transparent food packaging and display cases.
Though both come relatively affordable, HIPS plastic is easier to process and mold; hence, it allows more complicated designs in manufacturing.
7. FAQs about HIPS Plastic Material
Is HIPS plastic recyclable?
Yes, HIPS plastic is recyclable but not as acceptable in recycling programs as some other plastics.
What type of plastic is HIPS?
HIPS plastic is a thermoplastic polymer, specifically a modified version of polystyrene designed to enhance its impact resistance.
8. Conclusion
HIPS plastic is an essential material in various applications thanks to its good properties and advantages. By understanding this, manufacturers can make better decisions for cost-effective and high-performance production.
