How To Print On Polyethylene: Technical Guide for Manufacturers

Mastering the art of printing on polyethylene demands a meticulous approach. From grasping the intricate chemical and physical properties to navigating the diverse types of polyethylene, this technical guide equips manufacturers with insights on surface preparation, ink selection, and essential equipment. Delve into the nuances of printing methods while unraveling solutions to common challenges encountered when printing on polyethylene substrates. How to print on polyethylene? Let this guide be your compass in the realm of industrial printing.

1. Understanding Polyethylene Properties

Polyethylene (PE) is a widely used thermoplastic polymer that presents unique challenges and opportunities in the realm of printing. Its chemical and physical properties, various types, and the inherent difficulties associated with printing on PE plastic must be understood to achieve effective results.

Chemical and physical properties affecting printing

Surface Smoothness: PE has an exceptionally smooth surface, which can hinder the physical anchorage of inks and coatings, making adhesion difficult.
Chemical Inertness: The material is relatively inert to many solvent systems typically used to soften or etch surfaces for better ink integration. This means that common methods to enhance adhesion may have little to no effect, leading to inadequate integration of printing or coating.
Durability: Historically, printed surfaces on polyethylene have been temporary, as they can be easily rubbed, scratched, or lifted off. Adhesive tape tests often reveal that most printing can be removed from PE surfaces.

The material is largely inert to solvents used for surface preparation, resulting in minimal adhesion enhancement and poor integration of printing

Types of polyethylene

High-Density Polyethylene (HDPE): Known for its strength and rigidity, HDPE is commonly used in applications like containers and piping. It has a higher melting point and is less prone to warping, making it a preferred choice for certain printing applications.
Low-Density Polyethylene (LDPE): More flexible and lower in density, LDPE is suitable for applications requiring pliability, such as plastic bags and films. However, its lower strength compared to HDPE can limit its use in structural applications.

Known for strength and rigidity, HDPE is ideal for containers and piping, with a high melting point and low warping

Challenges when printing on PE

Warping: One of the primary challenges when printing on PE plastic is its tendency to warp during the cooling process. This can lead to dimensional inaccuracies and affect the overall quality of the printed object.
Poor Adhesion: PE materials often exhibit poor adhesion to the print bed and between layers, which can result in failed prints. This necessitates careful calibration of printer settings and the use of adhesion aids such as rafts or brims.
Temperature Control: Achieving the correct printing temperature is crucial. If the temperature is too low, the material may not flow properly; if too high, it can lead to degradation of the material properties.
Limited Availability of Filaments: While HDPE and LDPE are available for 3D printing, they are not as widely produced as other materials like PLA or ABS, which can limit options for users.

PE materials often show weak adhesion to the print bed and layers, highlighting the need for careful calibration and adhesion aids when learning how to print on polyethylene

2. Preparing for Printing

When considering how to print on polyethylene, it is essential to focus on three critical aspects: surface preparation, choosing the right ink, and the equipment needed. Each of these elements plays a vital role in ensuring successful printing outcomes.

Surface Preparation

Proper surface preparation is crucial for achieving good adhesion and print quality on polyethylene. Here are some recommended steps:

Cleaning: Begin by thoroughly cleaning the polyethylene surface to remove any contaminants such as dust, grease, or oils. This can be done using a mild detergent and water, followed by rinsing and drying the surface completely.
Surface Treatment: Since polyethylene is chemically inert, traditional solvent-based treatments may not be effective. Instead, consider using plasma treatment or flame treatment to increase the surface energy of the material, enhancing ink adhesion.

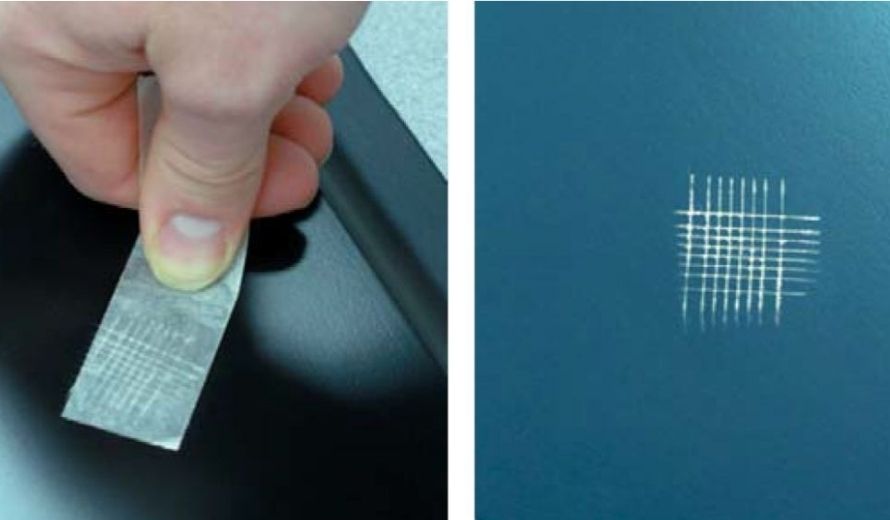

Testing Adhesion: After treatment, it is advisable to conduct adhesion tests, such as the Scotch Tape test, to ensure that the surface preparation has been effective. This will help identify any areas where the ink may not adhere properly.

Conduct adhesion tests like the Scotch Tape test after treatment to ensure effective surface preparation when learning how to print on polyethylene

Choosing the Right Ink

When selecting ink for polyethylene printing, consider the following key factors:

Ink Composition: The ink’s formulation is critical for its performance on polyethylene surfaces. Inks containing materials like carbon black, which can absorb radiant energy, are particularly effective. These inks generate heat when exposed to specific wavelengths of light, aiding in the integration with the polyethylene surface.
Printing Techniques: Different printing methods, such as silk screen, offset, or roll printing, may require specific ink formulations. It is important to choose inks that are compatible with the chosen printing process to ensure proper application and adhesion.
Heat Integration: The integration of ink with polyethylene is enhanced by exposing the applied ink to radiant energy, such as infrared radiation, which generates heat that softens the polyethylene and allows the ink to penetrate. This process enables immediate handling of printed materials without smearing, unlike traditional drying methods that rely on solvent evaporation.
Environmental Impact: The environmental impact of inks should be taken into account. Water-based inks are often favored due to their lower volatile organic compound (VOC) emissions, making them a more eco-friendly choice. However, they may require surface treatments to improve adhesion on polyethylene.

The ink's formulation is crucial for performance on polyethylene, with carbon black inks generating heat under specific light wavelengths — The ink’s formulation is crucial for performance on polyethylene, with carbon black inks generating heat under specific light wavelengths

Equipment Needed

When engaging in polyethylene printing methods, it is essential to utilize the right equipment to ensure high-quality results and efficient production processes. Below is a concise list of the necessary equipment:

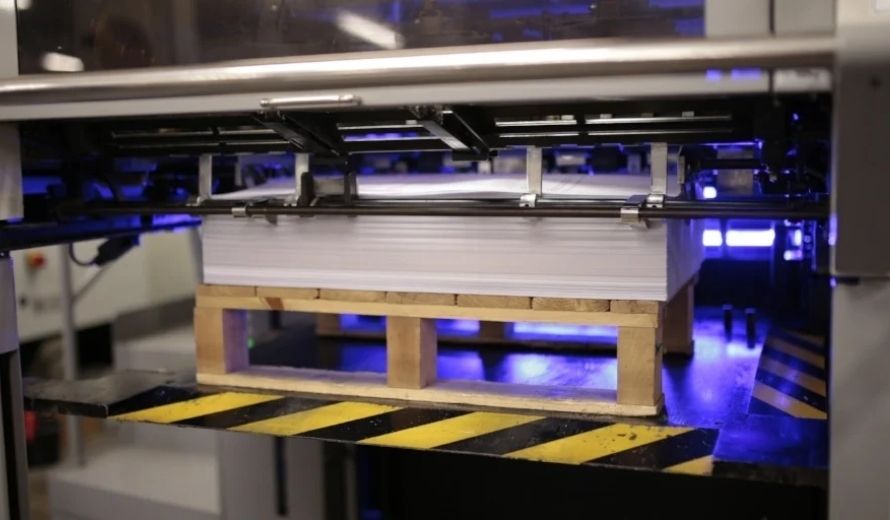

Printing Press: Depending on the printing method chosen (screen printing, pad printing, or digital printing), select a suitable printing press that can accommodate the specific requirements of polyethylene.
Curing Equipment: For inks that require curing, such as UV inks, ensure you have the appropriate curing equipment to solidify the ink after printing.
Surface Treatment Equipment: If using plasma or flame treatment, invest in the necessary equipment to prepare the polyethylene surface effectively.
Testing Tools: Have tools available for conducting adhesion tests to ensure the quality of the print and the effectiveness of the surface preparation.

Ensure you have the proper curing equipment for UV inks to solidify them after printing when learning how to print on polyethylene

3. Technical Guide to Print on Polyethylene

When it comes to PE printing techniques, several methods are commonly employed to achieve high-quality results on polyethylene surfaces. Each technique has its unique advantages and applications:

Flexography

Flexography is a highly efficient method for printing on plastic, particularly suitable for large-scale production of polyethylene products. In this process, a design is imprinted on a cylinder, and an uncut roll of plastic passes through adhesive-coated rollers. After the design is dried, the plastic film is rolled again to create individual plastic bags, allowing for multiple colors and making it ideal for labels and everyday product coverings. Its time and cost-effectiveness make it a preferred choice for high-volume printing.

Screen Printing

Screen printing is another viable option, particularly for shorter runs of plastic bag printing. This method can even be performed at home without the need for heavy-duty equipment. In screen printing, individual plastic bags are placed on a flat surface, and a metal screen is lowered onto them. Ink is applied by dragging a squeegee across the screen. While this process is somewhat labor-intensive, it allows for customization and is effective for designs that typically use one color. Once printed, the bags are left to dry before handling.

Digital Inkjet Printing

Digital inkjet printing offers flexibility and high-resolution output, making it suitable for both short and long runs. This method allows for direct printing from digital files onto polyethylene surfaces, enabling quick turnaround times and customization. Digital inkjet printers can utilize various ink types, including water-based and UV-curable inks, which enhance adhesion and durability on polyethylene.

Pad Printing

Pad printing is particularly effective for printing on irregularly shaped polyethylene items. This technique uses a silicone pad to transfer ink from a plate to the product, ensuring precise application even on complex surfaces. It is commonly used for promotional items and small parts, offering excellent detail and color reproduction.

4. Common Problems When Printing On Polyethylene

When considering how to print on polyethylene, it is essential to be aware of several common challenges that can affect the quality and durability of the printed material. Understanding these issues can help in selecting the right techniques and materials for successful printing.

Surface Tension Issues: Polyethylene has low surface energy, which can lead to poor ink adhesion. If the surface tension is not adequately addressed, the ink may not adhere properly, resulting in smudging or peeling.
Ink Compatibility: Not all inks are suitable for polyethylene. Using the wrong type of ink can lead to inadequate adhesion and poor print quality. It is crucial to select inks specifically formulated for plastic substrates.
Temperature Sensitivity: Polyethylene can be sensitive to heat, which may affect the printing process. Excessive heat can cause the material to warp or distort, impacting the final print quality. Proper temperature control during printing is essential.
Print Quality Variability: Variations in the polyethylene film, such as uneven thickness or surface texture, can lead to inconsistent print quality. Ensuring uniformity in the material can help mitigate this issue.
Drying Time: The drying time of the ink can be longer on polyethylene compared to other substrates. This can lead to issues such as smudging if the printed material is handled too soon after printing.
Environmental Factors: Humidity and temperature in the printing environment can also affect the adhesion and drying of inks on polyethylene. Maintaining optimal conditions is vital for achieving the best results.

Low surface energy in polyethylene can cause poor ink adhesion, leading to smudging or peeling if not properly addressed

5. Conclusion

In conclusion, understanding how to print on polyethylene requires a thorough grasp of its unique properties, proper preparation, and the selection of suitable printing methods. By addressing the challenges associated with ink adhesion and surface preparation, businesses can achieve high-quality results. With the right techniques and knowledge, printing on polyethylene can be an efficient process, resulting in durable and visually appealing products.
