How Many Types Of Plastic Extruders?

Plastic extrusion is a key process in the plastic manufacturing industry, allowing for the production of various plastic products using specialized equipment. Understanding the different types of plastic extruders is crucial for selecting the right equipment for specific applications. Here’s a concise overview of the classification of plastic extruders.

1. What Is a Plastic Extruder?

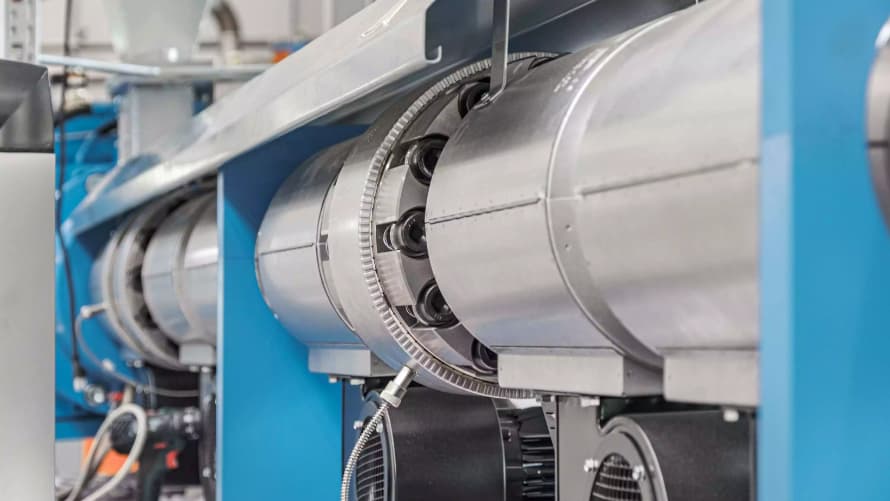

A plastic extruder is a machine that processes plastic materials into continuous shapes or profiles. The extruder heats, melts, and forms the plastic into specific shapes, which can then be cut, cooled, or further processed. This process is widely used in the production of pipes, sheets, films, and other plastic products.

2. Components of a Plastic Extruder

The plastic extruder consists of several key components that work together to melt, shape, and solidify plastic materials. These components include:

Hopper: Stores and supplies plastic granules for processing.
Feed throat: Transfers plastic from the hopper to the barrel.
Breaker plate: Filters large particles and maintains pressure within the barrel.
Barrel: Heats and melts the plastic while the rotating screw conveys it forward.
Feed Pipe/Adapter: Directs molten plastic toward the die.
Die: Shapes the extrudate into the desired profile.
Cooling system: Rapidly cools and solidifies the extruded product.

3. How Does A Plastic Extruder Machine Work?

A plastic extruder machine operates through a series of coordinated steps to transform raw plastic materials into finished products. Here’s an overview of the process:

Material feeding: Raw material enters through the feed throat at the rear of the barrel, contacting a rotating screw.
Melting and heating: The screw rotates at up to 120 rpm, pushing the beads forward. The barrel is heated to 200–275°C using multiple PID-controlled zones.
Melt formation: As the beads melt due to friction and pressure, temperature controls prevent overheating. Sometimes, heaters can be turned off, relying solely on friction.
Filtration: Molten plastic passes through a screen pack to remove contaminants, with a breaker plate creating back pressure for proper mixing.
Shaping: The molten plastic flows through the die, which imparts the desired shape to the final product.
Cooling: The product is cooled using a water bath or cooling rolls. Controlled cooling is essential to prevent collapse, especially for pipes or tubes.

4. How Many Types Of Plastic Extruders?

Plastic extruders can be categorized by criteria such as the number of screws, operation method, and specific applications. Each classification affects the extruder’s efficiency, material compatibility, and end product quality. Below are common plastic extruder types based on the number of screws and non-screw designs:

4.1. Single Screw Extruders

Single screw extruders are the most common type in the plastic industry, featuring a single rotating screw within a heated barrel. This design effectively melts and homogenizes plastic materials, making it ideal for producing films, sheets, and pipes. Their simplicity and ease of maintenance make them a cost-effective choice for high-volume production, often favored in basic plastic extrusion equipment setups.

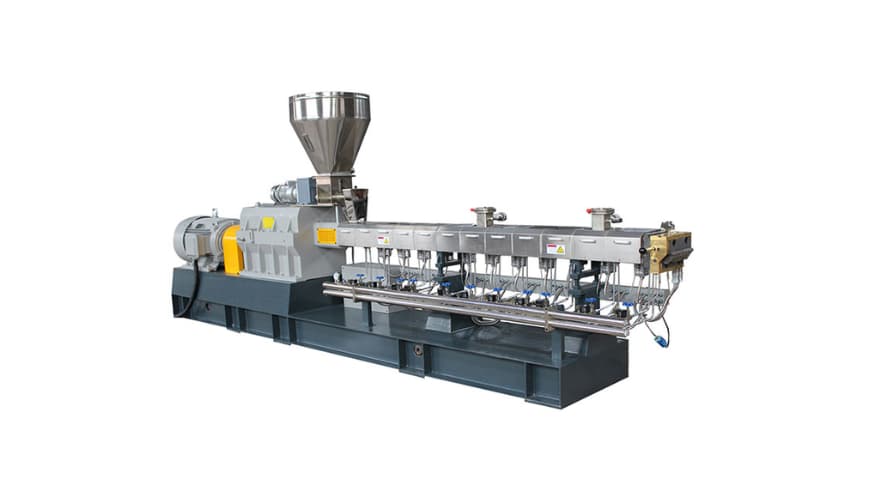

4.2. Twin Screw Extruders

Twin screw extruders consist of two intermeshing screws that rotate together, enhancing mixing and compounding capabilities. They are suitable for applications requiring thorough blending of diverse materials. Their superior mixing performance makes them a preferred option for high-precision and quality applications.

Read more: What Are The Differences Between Single And Twin Screw Extruders?

4.3. Ram Extruders

A ram extruder is a unique type of extruder that operates without a screw (non-screw type extruder). Instead, it employs a hydraulic ram to push high-viscosity materials through a die. Although less common in the industry, ram extruders are particularly effective for shaping thick materials and offer precise flow control. Their capability to handle challenging materials makes them valuable for specialized applications within the plastic industry.

4.4. Three Screw Extruder

A three screw extruder is an innovative type of plastic extrusion equipment that utilizes three intermeshing screws to process materials. This design enhances mixing, pumping efficiency, and material transport compared to traditional single screw extruders. The three screw configuration allows for better shear distribution and uniformity, making it particularly effective for processing complex materials, including those with varying viscosities.

5. How to Choose the Right Plastic Extruder For Your Project

Choosing the right plastic extruder for your project involves several key considerations. Here’s a comprehensive guide to help you make an informed decision:

5.1. Understand your material requirements

Starting with the identification of the specific type of plastic to be extruded, such as PVC or ABS, is essential, as each material has unique thermal and mechanical properties that significantly influence the extrusion process. Additionally, considering any additives or fillers to be incorporated is crucial, since these can alter material behavior and impact overall extruder performance.

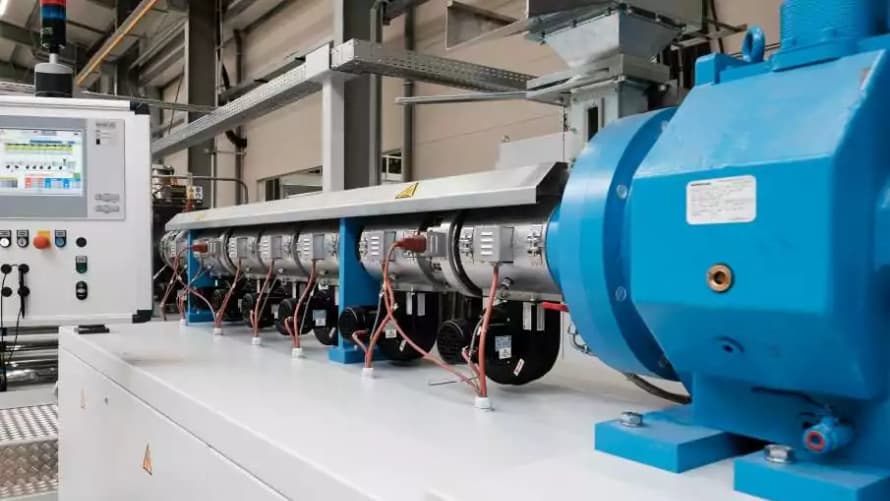

*Identifying the precise kind of plastic that needs to be extruded comes first.*

5.2. Determine the extrusion process

Choosing the extruder process is important for the project. For example, single-screw extruders are generally easier to operate and suited for simpler applications, while twin-screw extruders provide enhanced mixing capabilities, making them ideal for more complex materials and formulations requiring precise processing.

5.3. Assess production volume and speed

Evaluating production volume and speed requirements is critical. A higher output rate may necessitate a larger or more powerful machine, while efficient processing capabilities are essential for meeting faster cycle times and ensuring alignment with production goals. The right plastic extrusion equipment can help achieve these targets.

5.4. Evaluate extruder design features

Assessing key design features of potential extruders, such as the barrel length-to-diameter ratio (L/D), cooling systems, and die compatibility, is vital. A longer L/D ratio can enhance material mixing but may come with increased costs, requiring a balance between performance and budget.

*Understanding these design features helps in selecting suitable plastic extrusion equipment.*

5.5. Consider the control system

The control system impacts the extruder’s efficiency. Decide on the level of automation such as manual, semi-automated, or fully automated based on your production needs. Look for precise temperature and speed controls, as these are vital for maintaining quality and consistency in the extrusion process. Proper control systems enhance the effectiveness of plastic extrusion equipment.

6. Conclusion

Plastic extrusion is vital in the manufacturing industry, enabling the production of various plastic products. Therefore, understanding the different types of extruders is essential for selecting the right equipment for specific applications and improved production outcomes.
