Stretch Film Production: Process, Raw Materials and The Role of Filler Masterbatch

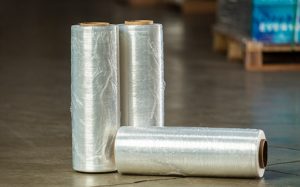

Stretch film production plays an important role in many industries today. Understanding the production process, essential raw materials and the role of filler masterbatches helps optimize costs for manufacturers and improve product performance for consumers. Discover how these components work together to create high-quality stretch film for a variety of packaging needs right in the article below!

1. Understanding Stretch Film

Stretch film is a highly elastic plastic film commonly used to wrap and secure products on pallets. The main function of stretch film is to protect against dust, moisture, and environmental impacts and to be tightly packed during storage and transportation. A quality stretch film will help limit product movement, increase efficiency, and avoid possible accidents that lead to unnecessary damage.

Therefore, stretch film is a cost-effective, efficient solution and is widely used in various industries. Stretch film is the definition of safe and reliable packaging applications.

2. Raw Materials Used in Stretch Film Production

2.1. Primary resin

One of the main components of stretch film is primary resin. This contributes to the essential properties of a high-quality stretch film, such as flexibility, tensile strength, and puncture resistance. Here are some common primary resins used in stretch film production:

LLDPE: This is the base resin for stretch film production due to its advantages such as maximum stretch, strength, and tear resistance. When encapsulated in stretch film, they become tightly bonded objects.
LDPE: They provide maximum transparency and flexibility in the film, allowing the film to be suitable for viewing packaged products. LDPE produces lower tensile strength than LLDPE.
Other polymers: In some specific applications, other polymers, including polyethylene metallocene (mPE), polypropylene (PP), and ethylene vinyl acetate (EVA), are being added to the stretch film manufacturing process, which improves the performance of the device film. They can also improve the elasticity recovery, transparency, and toughness.

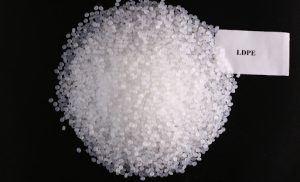

LDPE produces lower tensile strength than LLDPE. — *LDPE produces lower tensile strength than LLDPE*

2.2. Additives

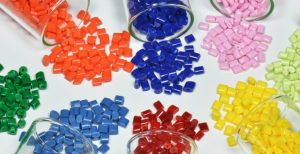

*Additives have made the stretch film a great success*

Additives are considered an extremely essential factor in improving the functional properties of stretch films. They are added during the manufacturing process to help the product strongly enhance the desired properties without losing the original nature of the material. This process makes the stretch film more durable and performs better against environmental challenges. Common additives that have made the stretch film a great success include:

Filler Masterbatch: They enhance the mechanical strength of the film, reduce production costs, and can be flexibly adjusted according to the needs of use.
Anti-UV additive: These additives help protect the stretch film from UV radiation, thereby reducing degradation due to sunlight. This is especially useful for outdoor storage and transportation.
Anti-aging additive: During the stretch film processing stage, antioxidants are added to minimize oxidation and help retain the mechanical properties of the stretch film. In addition, they also help the stretch film perform well against environmental impacts.
Anti-static additive: These additives reduce the build-up of static electricity. This is really useful when using stretch film for electronic packaging and technological devices to reduce the dust and dirt attraction.
Anti-slip agents: They reduce the surface friction of the stretch film so that the film can be removed smoothly and avoid tearing the film while wrapping the product.
Adhesive agents: These include the self-adhesive properties of the film, allowing the layers of the film to stick together but be easily removed. This is also one of the essential benefits during the product transportation process.

3. Stretch Film Production Process

*A proper selection and accurate measurement of mixtures create films of the same uniformity*

Step 1: Preparation of the Resin

During the initial stage of preparation, the manufacturer meticulously chooses the primary resin and additives, which serve as the raw materials for all the subsequent processes. Mixing additives with polymer resins. A proper selection and accurate measurement of mixtures create films of the same uniformity.

Step 2: Extrusion

In the extrusion process, a selected plastic mixture will then be melted into a molten form by applying heat and pressure. The molten mass is then pushed through a die in order to form the continuous film. The temperature is important during the production of final products as it will not degenerate the polymer.

Step 3: Casting or Blown Film Process

Casting: The molten spray of film impinges on a cold roller for rapid cooling, giving rise to a very smooth and transparent stretch film.
Blown Film: The molten plastic is extruded through a circular die and blown into bubbles and then cooled afterward. This processing type is quite flexible with high stretchability and high load stability.

Step 4: Stretching and Orientation

Stretching of film is done either uniaxially or biaxially so that it would be able to optimize the tensile strength, elasticity, or clarity. Precise setting of stretching ratios guarantees that the stretch film would perform at its best for wrapping applications.

Step 5: Cooling and Solidification

With the cooling being done either by air or water, the mixture will bind to form a rigid structure for stretch film. There is a need for a consistent cooling process to be employed to control the evenness of the resulting thickness and to avoid warping or uneven surfaces.

Step 6: Winding and Slitting

This refers to the final winding of the cooled stretch film into rolls and its slitting later into narrower rolls based on the specifications of the customers. They’re wound with proper tension to avoid creasing and to present smooth rolls.

Step 7: Quality Control and Inspection

The stretch film will be subjected to thickness, transparency, elasticity, and puncture resistance measurement checks before going into packaging. This step ensures that it adheres to both industry and customer requirements.

Step 8: Packaging and Storage

At last, the rolls are packed and kept well until delivery in a controlled environment to conserve the quality of the film. The rolls should be well stored to prevent the film from deteriorating due to heat, moisture, or dust.

4. The Role of Filler Masterbatch in Stretch Film Production

4.1. What is filler masterbatch in stretch film production?

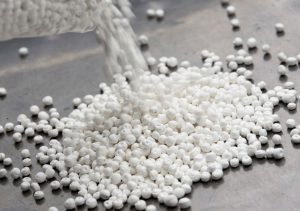

*Filler masterbatch enhances properties of the stretch film without sacrificing the original quality*

Filler masterbatch is a combination of calcium carbonate (CaCO3), polymer carrier resin and plastic additives. Filler masterbatch enhances the properties of the produced stretch film without sacrificing the original quality of the film. It has become quite important for applications in the packaging industry. It is now an essential material in the production of stretch films towards cost-effectiveness and sustainability.

4.2. Benefits of using filler masterbatch for stretch film production

Cost Reduction

Filler masterbatches can substitute some expensive base polymers, such as LLDPE, which lowers the manufacturing cost of stretch films. The manufacturers therefore are able to produce stretch films lower in cost while still producing the same quality standard. Such as, the filler material calcium carbonate reduces the cost of the whole material concerned in the production of packaging films.

Better Mechanical Properties

Filler masterbatches provide strength, stiffness, and puncture resistance to the films, thereby making stretch films more durable. For instance, the incorporation of fillers in films prevents tearing while transporting them, offering the safe delivery of the product.

Easy to Process

The incorporation of filler masterbatch improves film extrusion efficiency as a result of increased flow properties. Consequently, the efficiency at which production runs are smoothened reduces downtime and consequently also lowers energy consumption.

Increased Dimensional Stability

Filler masterbatch can raise the dimensional stability of films, making them shrink less while stretching and keeping them stiff under tension. That is, stretch films can be expected to hold their shape even under considerable mechanical tensions. For example, pallet-wrapping stretches tightly around goods solidly during longer journeys in shipping.

Environmental Friendliness

The inclusion of fillers in stretch film has reduced the volume of plastic resins in the formulations, thus significantly reducing the carbon footprints of stretch film production. This is very important in supporting sustainability goals and meeting regulatory manufacturing requirements.

5. Quality Control in Stretch Film Production

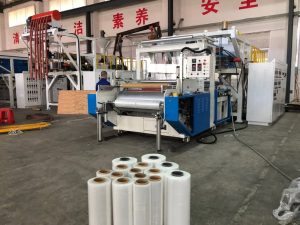

*Quality control ensure the final product meets industry standards and customer expectations*

Quality control in stretch film manufacturing involves monitoring and testing materials and processes to ensure the final product meets industry standards and customer expectations.
The following are the key roles in quality control in stretch film manufacturing:

Maintaining product consistency and performance: Helping to reduce unwanted defects in the finished product.
Preventing defects: Identifying and correcting problems early in the process.
Cost saving: Minimizing raw material waste through efficient manufacturing.
Ensuring product performance: Such as load stability, product protection, better durability, and ensuring goods are packaged and shipped safely.
Enhancing reputation: Improving reputation business and strengthening the manufacturer’s reputation in the market by ensuring consistent product delivery while reducing customer complaints and returns.

Some of the key aspects that are often carefully monitored are:

Thickness: Ensures that the film layers are uniform for stretch and have adequate strength.
Transparency: Ensures product visibility and aesthetics.
Tensile strength: Measures the film’s ability to resist breaking under tension.
Elongation at break: Tests how much the film can stretch before tearing.

6. About EuP Egypt’s Filler Masterbatch

EuP Egypt is proud to be a world-leading filler masterbatch supplier with many years of experience. We bring high-quality products manufactured through the most advanced techniques and machinery.

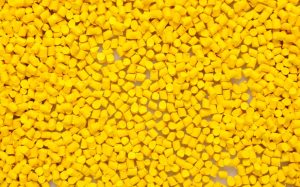

EuP Egypt filler masterbatch is meticulously designed to achieve the most accurate properties in plastic products. In addition, EuP Egypt’s team of highly technical experts enthusiastically discuss and consult with customers to research and develop filler masterbatch products that best suit each project’s specific requirements.

EuP Egypt has a variety of filler masterbatch and is confident that it can meet the diverse requirements of customers. Here are some impressive lines:

PE filler masterbatch: Serving as a cost-effective material solution in plastic processing as it replaces a portion of PE resin.
EFPE 1001 filler masterbatch: Being used as a replacement for PE resin in the manufacturing process.
PP filler masterbatch: Being designed to replace a portion of the pure PP resin in manufacturing processes.
EFPP 1001 filler masterbatch: Offering a combination of advantages for both the product and the manufacturing process.
Transparent filler masterbatch: Utilizing transparent filler masterbatch as a solution for saving production cost and improving product’s mechanical properties.
HIPS filler masterbatch: Delivering high whiteness, excellent dispersion, and good compatibility.

To receive useful advice and access high quality products, contact EuP Egypt now!

7. Conclusion

In summary, stretch film production involves a careful selection of essential raw materials such as LLDPE, LDPE, and some additives like filler masterbatch. In the production, filler masterbatch reduces production costs and improves film properties and environmental sustainability.

It can be assessed that stretch film production will continue to grow strongly and will always be an important field in the world’s packaging and logistics industry. Visit EuP Egypt’s blog today to update more useful material knowledge!
