Plastic shrinkage poses a significant challenge in injection molding, impacting the quality and precision of molded parts. Understanding its causes and effects, along with implementing effective solutions, is essential for manufacturers looking to optimize production processes. Let’s explore these topics in this article!
1. What is Plastic Shrinkage?
Plastic shrinkage refers to the reduction in size that occurs in plastics as they cool and solidify after finishing the injection molding process. This phenomenon is primarily due to the contraction of polymer chains as the material transitions from a molten state to a solid state.
2. Causes of Plastic Shrinkage
Key factors contribute to plastic shrinkage:
- Plastic composition: Different plastics impact shrinkage levels. For example, high-density polyethylene (HDPE) shrinks due to its crystalline structure, causing polymer chains to contract as they cool. Understanding the material type is essential for managing shrinkage effectively.
- Molecular weight: Higher molecular weight polymers shrink less than lower ones due to stronger intermolecular forces. This resistance to contraction makes it important to select appropriate molecular weights to minimize shrinkage.
- Thickness variations: Mold injections may lead to uneven thickness in parts, with thinner areas cooling more rapidly than thicker ones. This differential cooling can result in shrinkage and warping, compromising the part’s integrity and performance.
- Stress level: Stress during injection molding affects shrinkage. Excessive stress can cause fluid excess, leading to shrinkage and brittleness. High stress during cooling may rearrange polymer chains, further increasing shrinkage. Managing stress is crucial for high-quality molded products.
- Cooling rates: Uneven cooling speeds are a primary cause of shrinkage. If one part cools while another remains hot, the mold may warp. To mitigate this, preheat the mold and increase the injection speed of molten material.
- Temperature differences: Significant temperature variations during injection can result in non-uniform cooling, leading to shrinkage. Maintaining consistent high temperatures throughout the injection process helps ensure even cooling.

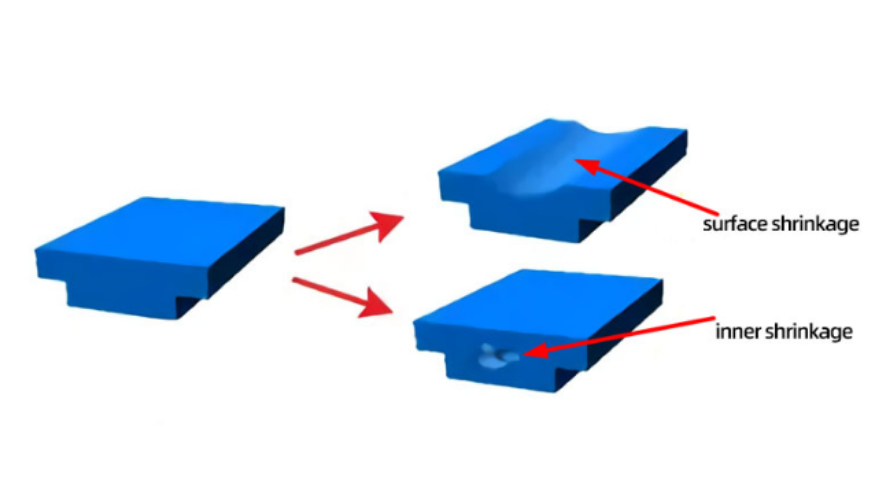

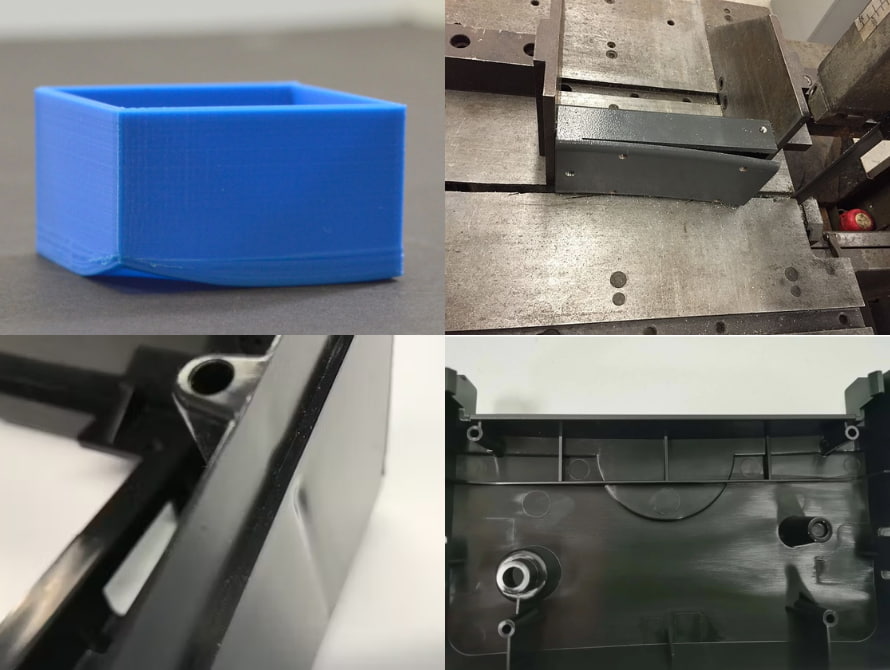

3. Effects of Plastic Shrinkage on Molded Parts
Plastic shrinkage can lead to several negative effects on molded parts, impacting both their quality and performance:
- Dimensional accuracy: Shrinkage can cause molded parts to deviate from design specifications, leading to poor fit and functionality. In precision-critical applications, even small inaccuracies can result in assembly issues and product failures.
- Appearance quality: Uneven shrinkage can create surfaces that are pitted, twisted, or distorted, affecting both the cosmetic appeal and functionality of the product. Aesthetics are particularly important in consumer goods, where visual quality influences consumer satisfaction.
- Mechanical properties: Shrinkage can create stress concentrations that reduce the strength and toughness of molded parts. This deterioration can shorten product lifespan and pose safety risks, especially in applications requiring high durability and reliability.
- Long-term performance: The long-term performance of molded parts can be compromised due to the effects of shrinkage. Parts that start with minor inaccuracies may experience accelerated wear or failure over time, leading to increased maintenance costs and reduced reliability.
4. Solutions to Mitigate Plastic Shrinkage
To effectively reduce plastic shrinkage, a combination of strategies can be employed to address its underlying causes. Here are some effective solutions:
- Material selection: Selecting the right plastic is crucial for minimizing shrinkage. Manufacturers should opt for materials with low shrinkage rates and high dimensional stability, and consult suppliers for optimal processing conditions.
- Mold design optimization: Improving mold design can reduce injection molding shrinkage. Manufacturers should use CAD tools to simulate filling and cooling processes, identifying areas of uneven shrinkage. Optimizing gate location and size ensures even filling and cooling.
- Process parameter optimization: Adjusting parameters like melt temperature, injection pressure, and cooling time helps control shrinkage. Experiments and statistical process control (SPC) tools can optimize these parameters.
- Mold temperature control: Controlling mold temperature is essential for uniform cooling and minimizing shrinkage. Temperature control units and cooling channels help achieve the desired temperature profile for optimal solidification.
- Gate design and placement: The gate’s design and placement significantly affect shrinkage. Proper designs, such as multiple or fan gates, ensure uniform filling and reduce shrinkage risk.
Post-molding treatments: Post-molding treatments like annealing or heat setting can alleviate residual stresses and minimize shrinkage in molded parts.
It is essential to minimize shrinkage to ensure the quality of plastic products.
5. The Shrinkage Values Of Plastics
Plastic shrinkage values can vary significantly based on the type of plastic material used and the conditions during the molding process. Here are some common plastic materials and their typical shrinkage rates:
| Plastic | Shrinkage value |
| Acrylonitrile Butadiene Styrene (ABS) | 0.7% – 1.6% |
| High Impact Polystyrene (HIPS) | 0.2% – 0.8% |
| High Density Polyethylene (HDPE) | 1.5% – 4.0% |
| Low Density Polyethylene (LDPE) | 2.0% – 4.0% |
| Linear Low Density Polyethylene (LLDPE) | 2.0% – 2.5% |
| Polyethylene Terephthalate (PET) | 0.2% – 3.0% |
| Polypropylene (PP) | 1.0% – 2.5% |
| Polyvinyl Chloride (PVC) | 0.1% – 0.6% |
6. FAQs about Plastic Shrinkage in Injection Molding
1. What are the methods to determine shrinkage?
- ASTM D955 – A standard for measuring shrinkage of thermoplastics from mold dimensions, applicable to injection and compression molding.
- ISO 294-4 – Focuses on determining molding shrinkage in injection-molded thermoplastic test specimens.
- ISO 2577 – Specifies shrinkage measurement for thermosetting molding materials.
2. How does plastic composition affect shrinkage rates?
The composition, including polymer type, additives, and moisture content, affects shrinkage rates. Different materials exhibit varying behaviors under the same processing conditions.
7. Conclusion
Understanding plastic shrinkage is vital for achieving high-quality molded products. By recognizing its causes and implementing effective solutions, manufacturers can mitigate shrinkage, enhance product quality, and reduce waste in the injection molding process.
