Polyvinyl chloride (PVC) pipes are widely used in plumbing, irrigation, drainage, and industrial applications due to their durability, cost-effectiveness, and resistance to corrosion. The PVC pipe manufacturing process involves a series of precise steps, requiring high-quality raw materials and advanced machinery to ensure optimal product performance. In this article we will explore a comprehensive overview of the PVC pipe manufacturing process, covering raw materials, essential equipment, production steps, common manufacturing issues, and quality control practices.
1. Raw Materials in PVC Pipe Production
Understanding PVC pipe raw material is essential for anyone interested in PVC pipe manufacturing. We start by sourcing raw materials. This ensures the end product meets rigorous standards, catering to the vast PVC pipe industry. The main components include PVC resin and various additives, which enhance properties like flexibility, temperature resistance, and chemical stability.
1.1. PVC resin
The main raw material of PVC pipes is polyvinyl chloride resin. It is a white, brittle powder produced through the polymerization of vinyl chloride monomers. The properties of PVC resin make it suitable for various applications, including excellent chemical resistance, high tensile strength, and low cost.
1.2. Additives
To improve the performance and characteristics of PVC pipes, several additives are incorporated into the PVC resin. These additives include stabilizers, lubricants, filler masterbatch, and pigments.
- Stabilizers: PVC resin is easily degraded during processing, so heat stabilizers need to be added to prevent the decomposition of PVC during processing. Commonly used stabilizers include calcium zinc stabilizers, lead stabilizers, etc.
- Lubricants: The role of lubricants is to improve fluidity during processing, making it easier for the resin to flow into the mold and avoid processing difficulties caused by excessive melt viscosity.
- Filler Masterbatch: Fillers such as quartz sand and calcium carbonate filler masterbatch can enhance the mechanical strength of the pipe and reduce costs
- Pigments: Pigments provide color to PVC pipes, allowing for easy identification and aesthetic appeal.
2. Essential Manufacturing Equipment For PVC Pipe Production
There are various machines used in the PVC pipe manufacturing process, but the two most commonly used are:
2.1. Extrusion Machine
Unformed material is forced or pulled into alignment guides and shaped dies by extrusion machines to create lengths of stock forms and cross-sectional shapes. They are mostly utilized in the composite-forming, metal, and plastics sectors. Construction, automotive, and aerospace applications all make use of extrusion machinery.
An extruder’s fundamental components are a tubular barrel, a rotating screw, and a ram or plunger inside the barrel. The material to be extruded is fed into the screw, ram, or plunger of an extruder from a hopper at one end. The extruded mass is shaped with a die at the other end. There is also extrusion equipment that may trim extruded materials into short or long intervals.
2.2. Injection molding machine
By heating plastic ingredients until they are molten, then injecting them into a mould where they cool and solidify, injection molding is a technique for creating molded items. The technique plays a significant role in the field of plastic processing and is appropriate for the mass manufacture of goods with complex shapes. The machine also helps in making the PVC pipes of desired shape and size.
3. How Are PVC Pipes Made? Explore Step-by-Step PVC Pipe Manufacturing Process
PVC pipe manufacturing process usually includes the following main steps: dry mixing, plasticizing, extrusion, molding, cooling, cutting and packaging.
3.1. Dry mixing
Dry mixing is the process of mixing PVC resin with various additives. At this stage, the raw materials are evenly mixed by a high-speed agitator to ensure that each component is evenly distributed. The mixed material is usually in powder or granular form, ready for subsequent processing.

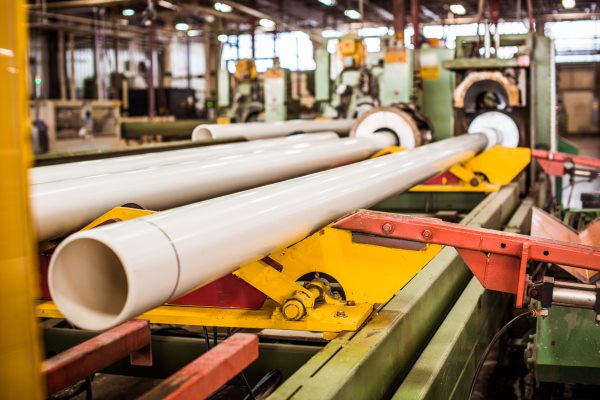

3.2. Plasticizing
During the plasticizing process, the dry mixed material is fed into the extruder. Under the action of high temperature and high shear force, the PVC resin gradually melts and mixes with other additives to form a uniform plastic melt. The temperature is controlled between 180°C and 220°C to ensure that the PVC does not decompose. The plasticized PVC melt has good fluidity and can pass through the die of the extruder smoothly.
3.3. Extrusion
Extrusion is the core process of manufacturing PVC pipes. The plasticized PVC melt is extruded into a tube through the screw and die of the extruder. The screw of the extruder pushes the plastic melt through the rotation and makes it pass through the die evenly, and finally extrude it into a pipe.
During the extrusion process, the design of the die is very critical, which determines the inner and outer diameters, wall thickness and surface finish of the pipe. The extruder is usually equipped with a water cooling system to ensure that the PVC pipe can be quickly cooled and shaped after leaving the extruder.

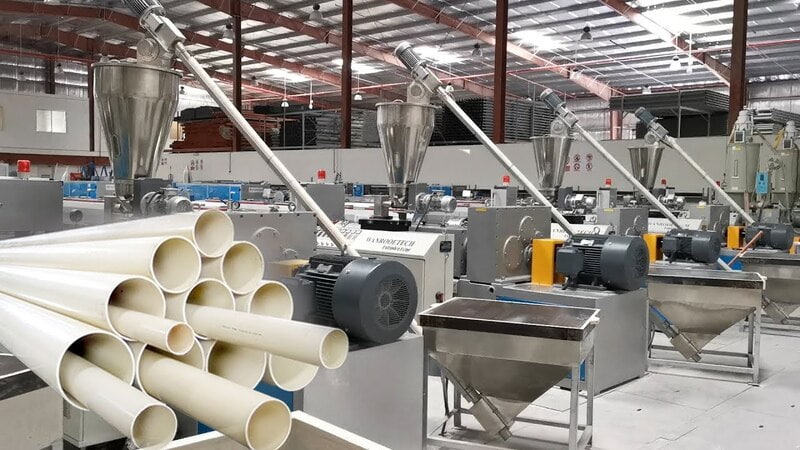

3.4. Molding and cooling
After leaving the die, the extruded PVC pipe is still at a high temperature and needs to be cooled by the cooling system. During the cooling process, the pipe is usually cooled by a cooling water tank or air to ensure that the size of the pipe is stable and shaped. At this point, the surface smoothness and appearance of the pipe are basically determined. For some special-purpose pipes, such as reinforced PVC pipes, a series of post-processing steps are required after cooling, such as external surface pressurization, reinforcement, and testing.

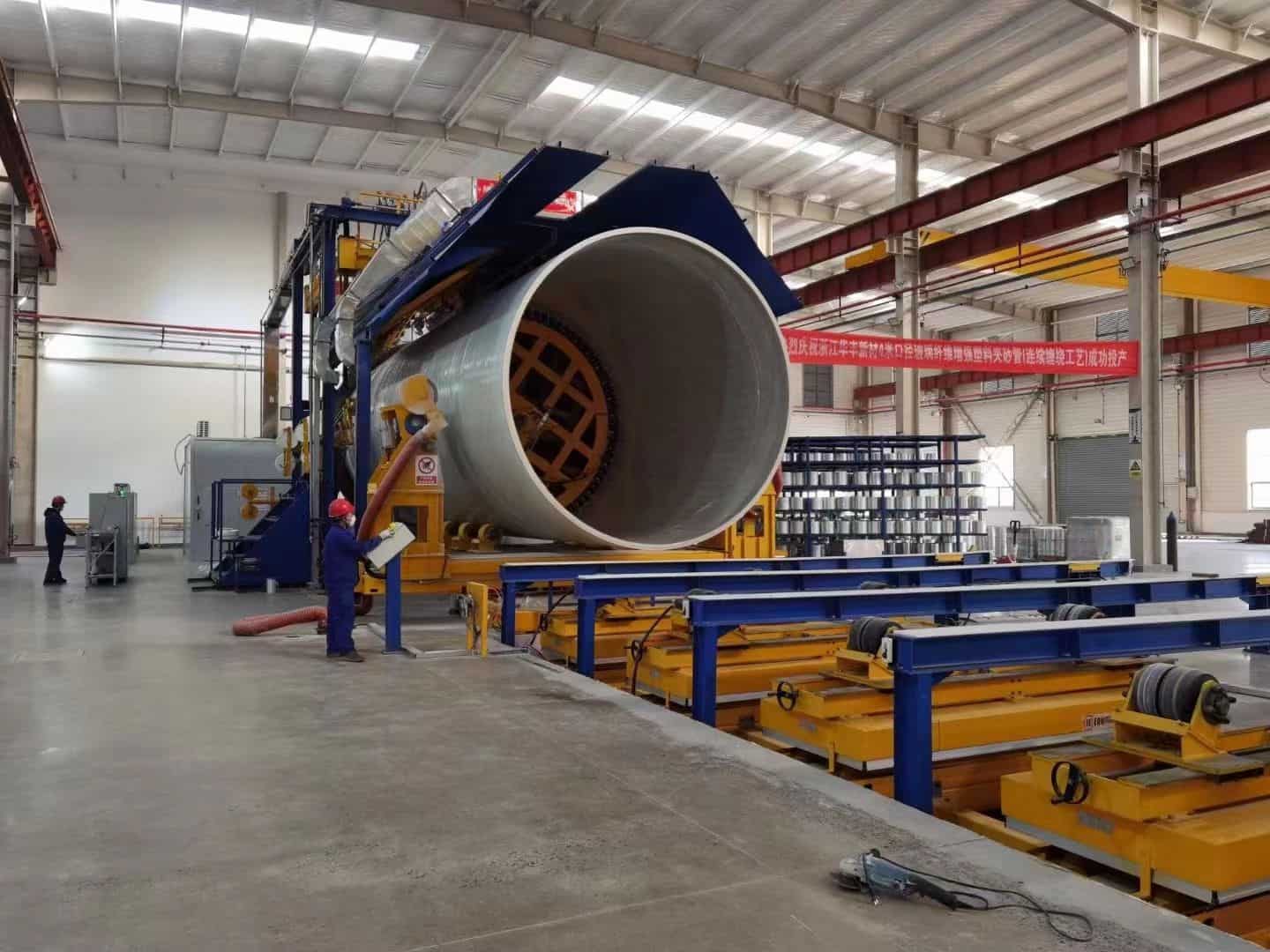

3.5. Cutting and winding
The cooled PVC pipe enters the cutting process. During this process, the pipe is cut into suitable sections according to the predetermined length. The cutting method can be manual cutting or an automatic cutting machine. For large-sized pipes, it is usually cut to a fixed length according to actual needs. For some small diameter PVC pipes, the pipes can be directly rolled up for subsequent transportation and storage.
3.6. Inspection and packaging
After production, PVC pipes need to undergo a series of quality inspections. Common inspection items include appearance inspection, dimension measurement, tensile strength, temperature resistance, inner and outer diameter difference, wall thickness uniformity, etc. These inspections ensure that the quality of PVC pipes meets industry standards.
PVC pipes that pass the inspection will be packaged into bundles or customized according to customer needs and prepared for shipment. Generally speaking, the packaging materials need to meet the requirements of moisture-proof and damage-proof to ensure that the product will not be damaged during transportation.
4. Common Issues In PVC Pipe Manufacturing Process
4.1. Extruder Friction
As with the nature of PVC plastic, the extruders have very high friction and stress. For the longer service life, the PVC pipe production line requires the special extruder for the twin-screw extruder and the robust construction materials are able to handle the extreme operating conditions.
4.2. Market Competition
Due to the widespread usage of PVC pipes for piping, there are numerous pipe producers. Therefore, manufacturers should offer a wide variety of items at affordable costs in order to stay ahead of the competition. This issue can be resolved by utilizing top-notch production machinery that boosts output while costing as little as possible and can produce different PVC pipe sizes.
4.3. Range of product
PVC pipes are available in a range of diameters and sizes, and a selection of fittings is available for each size. Because of this, it is highly desirable for PVC pipe manufacturers to offer the market a diverse selection of goods, which is why you will have to choose the good machine to provide various products.
5. Quality Control in PVC Pipe Manufacturing
The quality control of PVC pipes is a crucial link in the production process, which directly affects the performance and safety of the pipes. The main contents of quality control include:
- Selection of raw materials: The selection of qualified PVC resins and additives is the basis for ensuring the quality of pipes. Usually, manufacturers will conduct strict testing on raw materials.
- Monitoring of the production process: Parameters such as temperature, pressure, cooling speed, and molding process in the production process need to be strictly controlled to avoid pipe quality problems caused by improper operation.
- Finished product inspection: The appearance, size, mechanical strength, and chemical resistance of finished pipes need to be strictly inspected to ensure that each pipe meets the standard requirements.
- Testing equipment: In the quality control process, advanced testing equipment such as tensile testing machines, hardness testers, and heat deformation temperature testers are usually equipped to ensure that the various performance of the products meet the standards.
6. Conclusion
