Thermoforming vs Injection Molding: Which Manufacturing Process Is Right for Your Project?

Choosing the right manufacturing process is crucial to the success of your project. When comparing thermoforming vs injection molding, each method presents unique advantages and applications that are essential to consider. Let’s explore this to choose your suitable one!

1. What is Thermoforming?

Thermoforming is a process that involves heating plastic sheets until they become pliable and then shaping them over a mold. This method is particularly suited for creating large, shallow parts and is commonly used in packaging and automotive industries.

2. What is Injection Molding?

Injection molding involves injecting molten plastic into a mold to create complex shapes and high-precision parts. This technique is widely used for producing items like containers, automotive components, and various consumer products.

3. Key Differences Between Thermoforming vs Injection Molding

When comparing thermoforming vs injection molding, several critical aspects can influence your decision on which process is best suited for your project. Here’s a table highlighting the key differences:

	Thermoforming	Injection molding
Process overview	Heating plastic sheets and forming over a mold.	Melting plastic pellets and injecting them into a mold.
Production volume	Best for low to medium volumes.	Ideal for high-volume production.
Design complexity	Limited to simpler designs and shallow parts.	Capable of producing complex and detailed shapes.
Material types	Primarily uses thermoplastics like ABS, HIPS, PET.	Works with a wider variety of thermoplastics and thermosets.
Lead times	Generally shorter lead times due to simpler tooling.	Longer lead times due to complex mold fabrication.
Applications	Common in packaging, trays, and automotive interiors.	Used in automotive parts, consumer products, and medical devices.
Cost considerations	Lower initial setup costs; cost-effective for small runs.	Higher initial costs but lower per-unit costs at scale.

3.1. Comparing thermoforming vs injection molding in process overview

In the comparison of thermoforming and injection molding, the processes differ significantly. Thermoforming involves heating a plastic sheet until pliable, then molding it over a form, consisting of heating, forming, and trimming. In contrast, injection molding melts plastic pellets that are injected into a mold under high pressure, allowing for high accuracy and complex shapes.

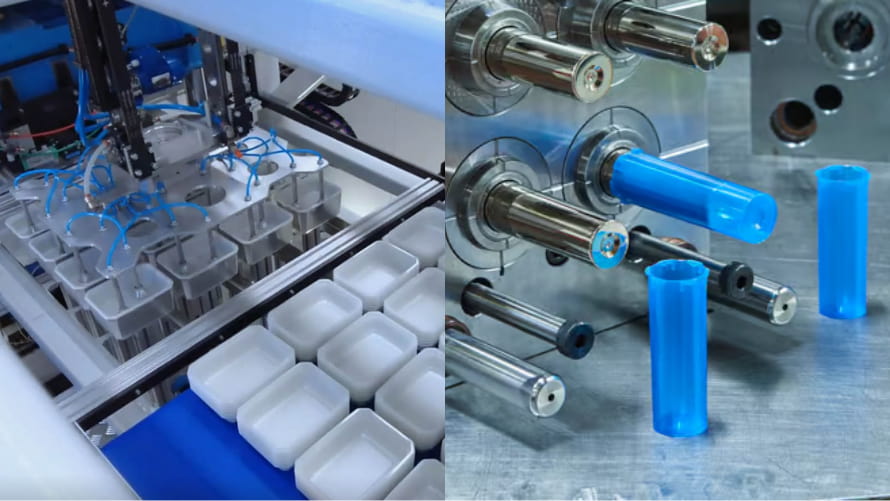

*There are notable distinctions between the methods of injection molding vs thermoforming.*

3.2. Comparing thermoforming vs injection molding in production volume

When considering thermoforming and injection molding in terms of production volume, thermoforming is best for low to medium volumes, making it ideal for prototypes and small batches. Injection molding, however, is designed for high-volume production, efficiently generating large quantities at a lower cost per unit after the initial setup.

3.3. Comparing thermoforming vs injection molding in design complexity

In terms of design complexity, thermoforming and injection molding show clear distinctions. Thermoforming is limited to simpler, shallower designs and contours, while injection molding excels at producing highly intricate parts with tight tolerances, making it the preferred choice for complex applications.

3.4. Comparing thermoforming vs injection molding in material types

Thermoforming primarily utilizes thermoplastics like ABS, HIPS, and PET, offering a limited selection. In contrast, injection molding accommodates a wider variety of materials, including thermoplastics and thermosetting plastics, providing greater options for projects.

3.5. Comparing thermoforming vs injection molding in lead times

Regarding lead times, thermoforming and injection molding highlight notable differences. Thermoforming generally has shorter lead times due to simpler tooling, enabling quicker project turnover. Meanwhile, injection molding requires longer lead times due to complex mold creation, but it is efficient once set up.

*In the thermoforming vs. injection comparison, thermoforming typically offers shorter lead times.*

3.6. Comparing thermoforming vs injection molding in applications

In applications, thermoforming and injection molding serve different needs. Thermoforming is commonly used for packaging and shallow components, while injection molding is prevalent in automotive parts, consumer products, and medical devices, where precision and complexity are crucial.

3.7. Comparing thermoforming vs injection molding in cost considerations

There is quite some difference in the cost considerations of thermoforming and injection molding. Setup costs in thermoforming are generally pretty low and hence accessible to smaller manufacturers, whereas injection molding requires a high upfront investment but ensures a lower per-unit cost for high-volume jobs, hence being more economical in mass production.

4. Advantages and Disadvantages

This overview of the advantages and disadvantages of thermoforming and injection molding helps identify which process may be more suitable for your specific project needs:

	Thermoforming	Injection molding
Advantages	Lower setup costs: The lower set-up cost gains access to smaller manufacturers. Higher production speed: the possibility of fast manufacture with prototyping and small batches. Design flexibility: Larger, simpler shapes can be designed with flexibility. Material versatility: Suitable for the majority of thermoplastic types.	High precision: Produces complex parts with tight tolerances. Cost efficiency at scale: Lower per-unit costs in large volumes. Material variety: Compatible with many thermoplastics and thermosets. Automation potential: Highly automated for consistent quality.
Disadvantages	Limited design complexity: not suitable for complicated shapes or narrow tolerances. Lower production volumes: Too inefficient for large quantity needs. Surface finish: Might lack the detail and finish of injection-molded parts.	Higher initial costs: Significant setup and tooling expenses. Longer lead times: More complex mold creation leads to delays. Design limitations: Mold constraints can restrict certain features.

5. Choosing the Right Plastic Manufacturing Process for Your Project

When choosing between thermoforming vs injection molding for your plastic manufacturing needs, it’s crucial to assess your project’s specific requirements. Each process offers unique strengths suited for different applications. Here’s a guide to help you decide:

When to choose thermoforming:

Low to medium production volume: Select thermoforming if your project involves limited quantities or prototype development.
Simpler designs: Opt for thermoforming when creating larger, shallow parts or when design complexity is minimal.
Faster turnaround: If you need quicker lead times and a faster production process, thermoforming is the better choice.
Lower budget for initial costs: Choose thermoforming if you have a limited budget for setup and tooling costs.
Material flexibility: If you want to work with various thermoplastics and need to accommodate short runs, thermoforming is suitable.

When to choose injection molding:

High production volume: Choose injection molding for projects requiring mass production, where efficiency and cost per unit are critical.
Complex and detailed designs: If your product demands intricate shapes, tight tolerances, or high precision, injection molding is the way to go.
Durability and strength requirements: Opt for injection molding when producing items that need to withstand rigorous use or environmental factors.
Long-term cost efficiency: If you anticipate producing large quantities over time, the higher initial costs can be offset by lower per-unit costs.
Material variety needs: If your project requires a wide range of materials, including thermosetting plastics, injection molding offers greater flexibility.

*How to choose between thermoforming vs injection molding*

6. FAQs about Thermoforming vs Injection Molding

1. Which method is better for high-volume production, thermoforming or injection molding?

Injection molding is better for high-volume production.

2. What types of products are best suited for thermoforming vs injection molding?

Thermoforming is ideal for simpler and larger parts while injection molding is suited for complex and detailed products.

7. Conclusion

Understanding the differences between thermoforming vs injection molding is vital for selecting the right manufacturing process for your project. By evaluating your specific needs, you can choose the method that best aligns with your goals.
