Vacuum forming is an essential manufacturing process that greatly shapes the future of the plastic forming industry. A high-quality manufacturing process requires that compliance with production steps is ensured with production steps, selecting the right materials and machinery. The following article provides an in-depth perspective on vacuum forming to help you quickly grasp the important details. Let’s explore now!
1. What Is Vacuum Forming?
Vacuum forming is a popular manufacturing process due to its ease of operation, affordability, and versatility in product design.
In industrial vacuum forming, a plastic sheet is heated until it becomes soft and pliable. The plastic sheet is then placed on a mold with the help of vacuum pressure to create a three-dimensional object. It has become one of the essential processes in many areas of life, enabling the creation of customizable designs easily.
Vacuum forming can be compatible with many different types of plastic materials as well as suitable for a variety of production scales. Vacuum forming is considered the top choice for many manufacturers looking for reliable and cost-effective manufacturing solutions.
2. Vacuum Forming Manufacturing Process
An effective vacuum forming process requires careful adherence to a number of important steps. Let’s explore the steps below.
2.1. Mold Design
The mold is the part where the shape of the final product is determined. Depending on the requirements of the project, the materials used in making molds can vary from wood, aluminum, etc. The mold must have appropriate draft angles (slopes) to allow for easy removal of the formed plastic. Ensure that the mold is smooth and has no imperfections, as these will transfer to the final product. For complex designs, consider adding vent holes to allow trapped air to escape.
2.2. Plastic Sheet Selection

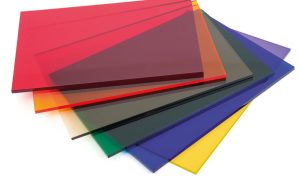

Some of the important factors to choose a plastic sheet such as the right thickness, type, impact resistance, flexibility, and some other properties. Common materials used are ABS, acrylic, and PETG. These plastic sheets need to be cut to an appropriate size, ensuring it is clean and free of dust or dirt particles, which may interfere with the surface finish.
2.3. Plastic Sheet fixation
In the vacuum forming process, the plastic sheet needs to be clamped in a clamping frame to restrain it from moving during heating and forming. It is very important to ensure that the plastic sheet is clamped evenly and firmly to avoid uneven heating and deformation.
2.4. Heating of Plastic Sheet
The plastic sheet is placed in an oven where it is heated to its forming temperature. This step in vacuum forming helps to soften the plastic, making it easier to shape. The temperature will vary depending on the material to be used. Be careful not to overheat, because it can make the plastic too thin or even form bubbles. An infrared thermometer should be used to accurately monitor the temperature of the sheet.
2.5. Forming Over the Mold
Once heated, the plastic sheet is promptly placed over the mold. The vacuum removes the air between the sheet and the mold. At this step, the plastic will tightly conform to the shape of the mold as designed. This step requires fast proceeding in forming the sheet before it cools. Make sure that the vacuum system is working well to get the molding complete timely.
2.6. Cooling the Formed Plastic

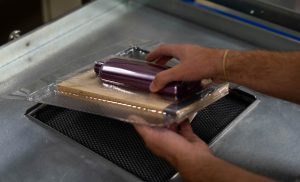

The formed plastic is left to cool while still on the mold. This can be hastened with the help of fans or misting systems. Do not remove the plastic too early; it will warp or deform. Let it have sufficient time to harden fully.
2.7. Trimming and Finishing
Excess material around the edges of products is trimmed with the help of cutting tools or CNC machines. The final product may also undergo other finishing processes, such as sanding or painting. Use sharp cutting tools to ensure clean and beautiful edges after cutting. For high-precision applications, consider automated trimming solutions.
2.8. Quality Inspection
At the end of the vacuum forming process, the finished product is inspected for defects such as uneven surfaces, air bubbles, or improper dimensions. To ensure the best quality, manufacturers can set up quality control checkpoints at various stages of the process to catch and fix problems early.
3. What Materials Can Be Used In Vacuum Forming?
Vacuum forming is suitable for a large number of thermoplastic types. Each material brings specific advantages, which suit every material to differing applications. Listed below are some of the commonly used plastics within this process:
- Acrylonitrile Butadiene Styrene (ABS): ABS vacuum forming products always show good durability and impact resistance. It has very good heat resistance and excellent thermoforming properties for complex shapes.
- Polycarbonate (PC): PC is known for its durability and transparency. Products vacuum molded from PC have high heat resistance and maintain good optical transparency over a wide temperature range.
- Polyethylene Terephthalate (PET): PET has impressive heat resistance. PET vacuum forming products have good transparency allowing clear display of the product inside.
- High Impact Polystyrene (HIPS): These are commonly used in the vacuum forming process allowing the creation of durable products but at a great weight savings.
- Polyvinyl Chloride (PVC): As one of the strongest weather resistant materials, PVC is commonly used in construction, signage and industrial purposes. In the vacuum forming process, manufacturers often utilize solid PVC.
4. What Machines Are Used In Vacuum Forming?
An efficient and safe vacuum forming process requires the right equipment for your needs. Consider the following types of machines that can provide you with a high-quality vacuum forming process:
4.1. Manual Vacuum Forming Machine

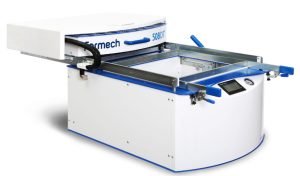

This type of machine is quite popular due to its simplicity. Additionally, they are also known to be quite cost-effective and suitable for small-scale forming and production operations. For this type of machine, the operator monitors the entire operation to ensure smooth and successful product creation.
When using a manual vacuum forming machine, it is necessary to invest human resources for continuous operation. This ensures a stable heating process and prevents unnecessary damage.
4.2. Semi-automatic Vacuum Forming Machine
Semi-automatic machines are operated by combining manual control and some automatic features. Some of the machine operations will be based on pre-set programs in parallel with human operation monitoring. They are typically used in some medium scale production.
For this type of machine, it is important to have a good understanding of the automatic parameter settings to ensure accuracy and consistent quality.
4.3. Fully Automatic Vacuum Forming Machine
In larger production scales, fully automatic vacuum forming machines are used to save on labor. They provide a high level of automation even for complex designs. Pre-set programs help create products that are consistent in quality and shape while cutting down on labor costs.
Along with this convenience, it is also important to pay attention to regular maintenance and calibration of the machine. This process helps ensure that all automatic functions related to heating and vacuum pressure are working perfectly.
4.4. Pressure Forming Machine
The main function of this machine is to increase the air pressure during the vacuum forming process. The additional pressure enables the forming process to achieve more sophisticated and high-quality designs. This machine is best suited for creating parts with sharp edges, delicate textures and delicate details.
A certain initial investment is required to own a high-quality machine to ensure good performance over time. Using quality molds helps the forming process achieve maximum precision and detail of complex designs.
4.5. Rotary Vacuum Forming Machine
These machines have a rotating platform that reduces working time and allows the use of multiple molds in sequence. In large-scale production, this type of machine saves time, labor costs and provides high precision in forming.
Optimizing mold placement and rotation speed can be considered to minimize cycle time while maintaining quality. Mold alignment should also be monitored to avoid product distortion.
5. What Are The Advantages And Disadvantages Of Vacuum Forming?
5.1. Advantages of Vacuum Forming
- Cost-Effectiveness

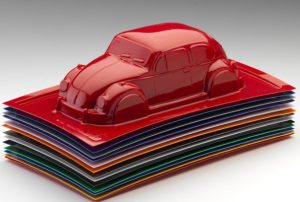

It is said that vacuum forming happens to be one of the most cost-effective manufacturing methods used, being suitable for production runs from low up to large amounts. Tooling costs are considerably much less compared to those incurred in other forms of injection molding, since molds can be made from inexpensive materials like wood or aluminum.
Small enterprises that want to create their own typical packaging for products, vacuum forming will not entail investing in expensive molds or machinery. They can enjoy the advantage of such operations without the initial financial burden.
- Easy to operate
The vacuum forming process is quite simple in terms of preparing the machine for operation. Depending on the needs, the manufacturer can choose the appropriate type of machine. This process can be completely operated manually, semi-automatically or fully automatically. In addition, the vacuum forming process only requires carefulness and does not require too much skill or expertise from the operator.
For small brands, the forming process can be operated manually with simple operations. On the contrary, when mass production is needed, the forming process can be fully automated, making production easier than ever.
- Easy to shape
The vacuum forming product is created based on the shape of the mold that is designed from the beginning. These molds can be adjusted or even changed in shape depending on the production needs at each time. This makes them an ideal choice for easily producing products with a variety of shapes from basic to sophisticated.
In addition, some of the forming parameters of the machine can be adjusted if necessary to suit the product. For example, in case the product shape needs to be changed, the manufacturer can proceed by installing the appropriate mold.
- Wide range of material options
Vacuum forming expands manufacturing opportunities because it is compatible with a wide range of plastic materials on the market. It allows for the forming of many plastics with a variety of properties, thicknesses and shapes. This allows manufacturers to create products from simple to complex. This is a significant advantage for complex applications such as home decor and automotive
5.2. Disadvantages Of Vacuum Forming
- Limited Material Thickness
Vacuum forming is most effective with thin plastic sheets. Using thicker materials can lead to erroneous heating and difficulties in developing the needed shape.
One of the best solutions is that manufacturers should use plastic sheets of the appropriate thickness, ensuring an even distribution of heat on the material. For thicker materials, alternative forming methods, such as pressure forming and injection molding, must be considered.
- Warping risk
Warping can occur if some steps are not handled properly. This will lead to product distortion and increased material loss.
To deal with this risk, some steps need to be carefully considered, such as ensuring that the plastic sheet is firmly fixed to the mold, ensuring thermal stability and avoiding premature de-moldering of the product before it has completely cooled.
6. What Are The Main Applications Of Vacuum Forming?
Vacuum forming is a versatile manufacturing process used across various industries. Here are some of its main applications:
6.1. Packaging
Vacuum forming is a good method for lightweight, cost-effective and highly protective packaging. Vacuum forming meets the needs of mass production for packaging applications, including food, cosmetics, jewelry, and even electronics. These packages are highly advantageous due to their product visibility and flexibility in customizing different types of products.
6.2. Automotive Industry
Vacuum forming can provide a product that is lightweight but also strong and durable. For car parts, the weight reduction can help improve the fuel economy of the car.
Many car manufacturers have quickly taken advantage of this method to create components both inside and outside the car such as dashboards, handles, seat trims, etc.
6.3. Medical Industry

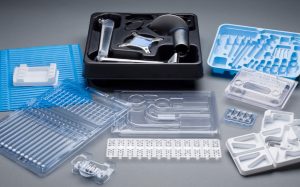

Vacuum forming process helps to quickly produce medical disposable products to quickly meet the huge consumer demand of the medical industry. Some common applications include disposable plastic molds, medical trays, protective equipment such as face shields and gloves.
6.4. Product Display
Vacuum forming is the optimal solution for display trays and shelves of retail stores selling cosmetics, toys or electronic branded products.
6.5. Consumer Goods
Vacuum forming is a simple, fast and cost-effective production option for household appliances and children’s toys. Thanks to this method, manufacturers can freely produce products with diverse styles and designs to meet the ever-changing needs of users. In addition, cost savings in the production process also help manufacturers price products competitively, resulting in better business efficiency.
7. FAQs about Vacuum Forming
- How does vacuum forming differ from other thermoforming techniques?
Vacuum forming differs from other thermoforming techniques in its simplicity and use of only vacuum pressure to shape plastic sheets, making it ideal for simple designs and low-cost production. Vacuum forming is faster and more cost-effective for any scale of production.
- Can vacuum forming be used for prototyping?
Vacuum forming is great for prototyping. It allows for easy testing of designs and materials before committing to mass production. Low machining costs and fast production times make it a practical choice for prototyping.
- What products in daily life are made using vacuum forming?
Many daily life products are made using vacuum forming. Examples include food packaging trays, packaging for electronics, automotive interior panels, plastic housings for appliances like coffee makers, and protective face shields.
8. Conclusion
Vacuum forming is the necessary technique of modern manufacturing because it is one of the cost effective processes for manufacturing high-quality plastic products. Its greatest advantages are low costs, compatibility with a wide variety of materials, and lightweight construction of the final products while ensuring good durability.
This technology, widely used in packaging, automotive, medical and retail industries, to auto applications. Moreover, owing to several advances in technology, vacuum forming brings benefits in operation, saving labor cost. In the future, vacuum forming will continue to be a prominent technique for prototyping and mass production in an advanced production environment.
